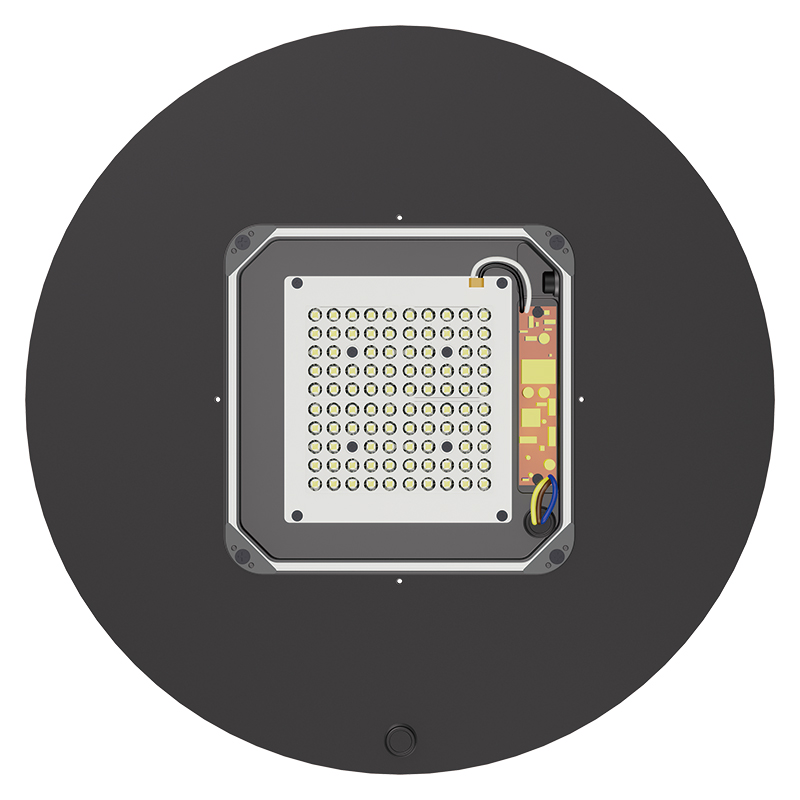

BPL‑SL‑M Built‑in Driver LED Retrofit Kit IP66 60‑120W Street Light Floodlight Dual‑Mode For Vintage Lantern Renovation
Floodlight
BPL‑SL‑M driver‑free linear IC retrofit kit removes transformers and large electrolytic capacitors for outstanding anti‑vibration performance. With wide‑voltage, flicker‑free and cost‑saving features, it supports stepless dimming. Zero‑modification installation adapts to square or round old lantern housings, and supports street‑light / flood‑light mode switch for vibration‑prone historic‑building renovation.
- ⭐ All‑in‑one built‑in driver design
- ⭐ Supports DALI & 1‑10V dimming control
- ⭐ PF＞0.95 with multiple protections
Specifications
- Application Scenarios
- Indoor
- Multifunctional Traditional LED Retrofit Kit
- Built‑in Driver+Round Adapter Plate
KEY FEATURES
Integrated built‑in driver adopts all‑in‑one structure, reduces complicated external wiring work for vintage lantern retrofit projects on site.
Single‑person installation can be completed within 15 minutes, ideal for lamp housings with sufficient inner installation space for outdoor renovation.
It maintains power factor above 0.95 and integrates over‑voltage as well as over‑current protection to ensure safe and stable long‑term outdoor operation.
Supports 1‑10V and DALI dimming protocols, realizing flexible brightness adjustment to satisfy diversified lighting demands of outdoor projects.
IP66 fully‑sealed protection, compatible with square & round adapter plates, supports street‑light/flood‑light dual‑mode conversion for multiple scenarios.
APPLICATIONS
Vintage lantern energy‑saving outdoor renovation projects
Urban roadside heritage‑style street lighting upgrade
Park landscape and building facade lighting retrofit
TECHNICAL SPECIFICATIONS
| Title | BPL‑SL‑M Built‑in Driver LED Retrofit Kit IP66 60‑120W Street Light Floodlight Dual‑Mode For Vintage Lantern Renovation |
|---|---|
| Rated Voltage | AC 100-240V/277V50/60Hz |
| LED Driver | Philips (Standard) / Other brands optional |
| Power Factor | >0.95 |
| THD | 70 (Standard)/Ra>80 |
| Color Temperature (CCT) | 1800K,2200K,2700K,3000K,4000K,5000K,5700K,6500K |
| Materials | High-pressure die-cast aluminum, tempered glass, UV-stabilized polycarbonate |
|---|---|
| Housing Color | Black (Standard)/Custom colors available |
| Operating Environment | -40°C~ 50°C, 10% ~ 90% RH (Relative Humidity) |
| Lifetime at ℃ Ambient Temperature | >100,000h |
| Impact Protection Rating | IK08 |
| Mounting Kit | Round Kit (400mm) / Square Kit (400 X400mm); Custom shape & size available |
Photometric Parameters
Click to enlarge
DOWNLOADS
FAQ
Q1: How long does installation take for built‑in driver retrofit kit?
A1: Single‑person installation can be finished within 15 minutes for housings with adequate inner space.
Q2: What dimming protocols are supported by built‑in driver version?
A2: It supports both 1‑10V and DALI dimming protocols for flexible brightness adjustment.
Q3: What protection functions does this built‑in driver module have?
A3: It features over‑voltage & over‑current protection, PF＞0.95 and IP66 outdoor waterproof rating.
