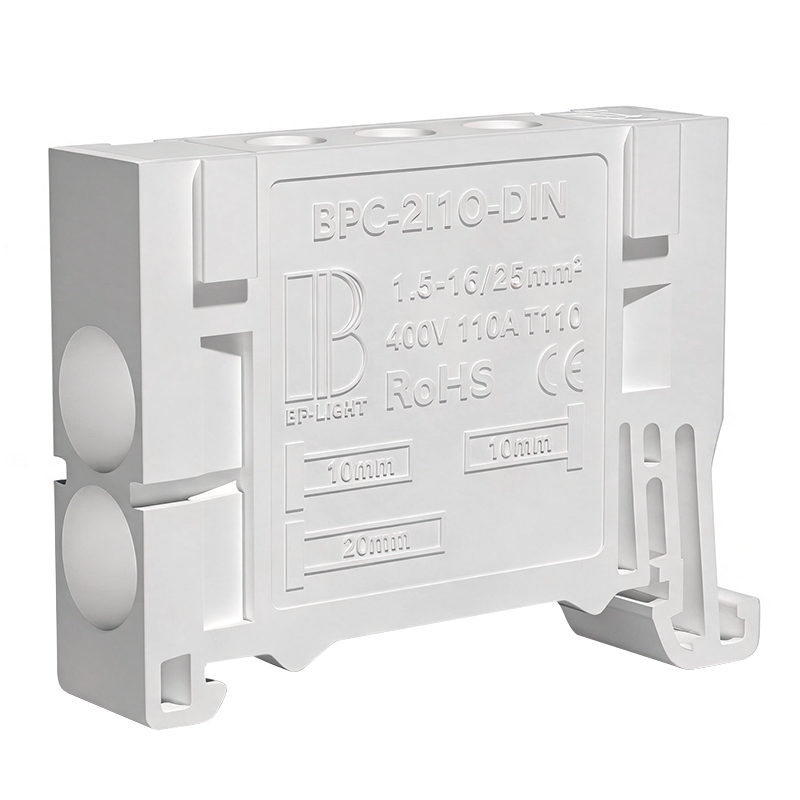

Terminals & Terminal Blocks | Electrical Protection Devices for Lighting Junction Boxes
terminal strip
Terminal blocks are European benchmark connectors for public street lighting, compatible with junction boxes.Featuring structure and solid one-piece brass body, they deliver low power loss and superior corrosion resistance. Each conductor has an independent compartment for separate disconnection without cutting off other circuits. Supporting 0.5–25 mm² mixed cables, V0 self-extinguishing housing, 400V/110A rating and -40°C~110°C working temperature, they comply with EU standards, mount on 35 DIN rail and enable fast installation & easy maintenance.
- ⚡ Quick and flexible installation.
- ⚡ Improve the durability of equipment effectively.
- ⚡ Strong versatility, fully compliant with international DIN 35mm rail standard.
Specifications
- Solid Conductor
- 1.5~25mm²
- Rated Conductor Cross-section
- 25mm²
- Connection Method
- 2-in-1-out
KEY FEATURES
Wide Cable Cross-Section Compatibility: Compatible with cables ranging from 0.5 to 25 mm². Wires of different cross-sectional areas can be connected in a single terminal block, supporting a maximum of 3 circuit inputs and 1 lighting fixture output.
Compliant with EU electrical safety standard EN 60947-7-1
Durable Performance: Operating temperature ranges from -40°C to +110°C, excellent corrosion resistance for outdoor use. Repeated tightening and loosening will not damage cable conductors.
APPLICATIONS
Public LED street light projects
Road & tunnel lighting systems
Park & municipal landscape lighting
Traffic signal equipment
Small outdoor control enclosures
New energy auxiliary lighting systems
Industrial low-voltage control cabinets
TECHNICAL SPECIFICATIONS
| Title | Terminals & Terminal Blocks | Electrical Protection Devices for Lighting Junction Boxes |
|---|---|
| Connection Quantity | 3 |
| Total Potential Points | 1 |
| Rated Voltage | 400V |
| Rated Current | 57A |
| Solid Conductor | 1.5...25mm²/25...3AWG |
| Stripping Length | 10-30mm |
| Mounting Method | DIN-35 RAIL |
|---|---|
| Insulating Material | PA66 |
| Operating Temperature | -40....110°C |
| Ambient Temperature (Storage) | -25....60°C |
| Product Weight[g] | 35 |
| Packaging Dimensions (LX W X H) [mm] | 46.5*11*35 |

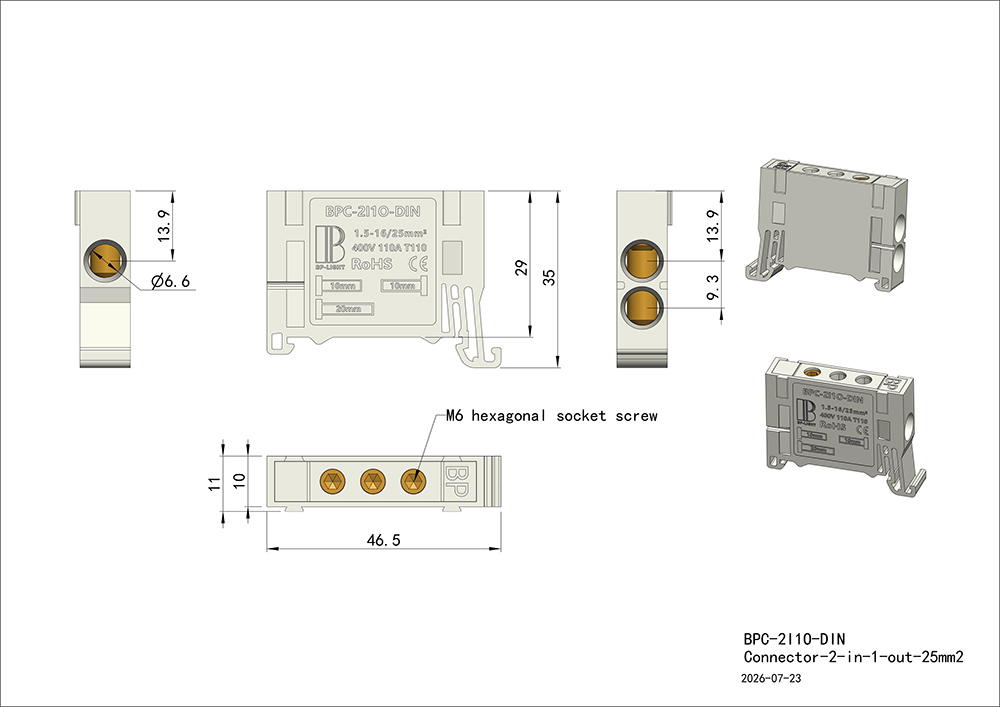

Please refer to the Dimension Drawing for detailed overall dimensions.
Click to enlarge
DOWNLOADS
FAQ
Which DIN rail fits BPC-2I1O-DIN-10 terminal block?
Standard DIN-35 rail mounting.
Wire range compatible with this terminal?
1.5–25mm² copper wire (25–3AWG).
Working temperature range?
-40°C ~ +110°C, PA66 insulating housing.
Suitable for LED street light junction boxes?
Yes, ideal for public lighting enclosure wiring.
