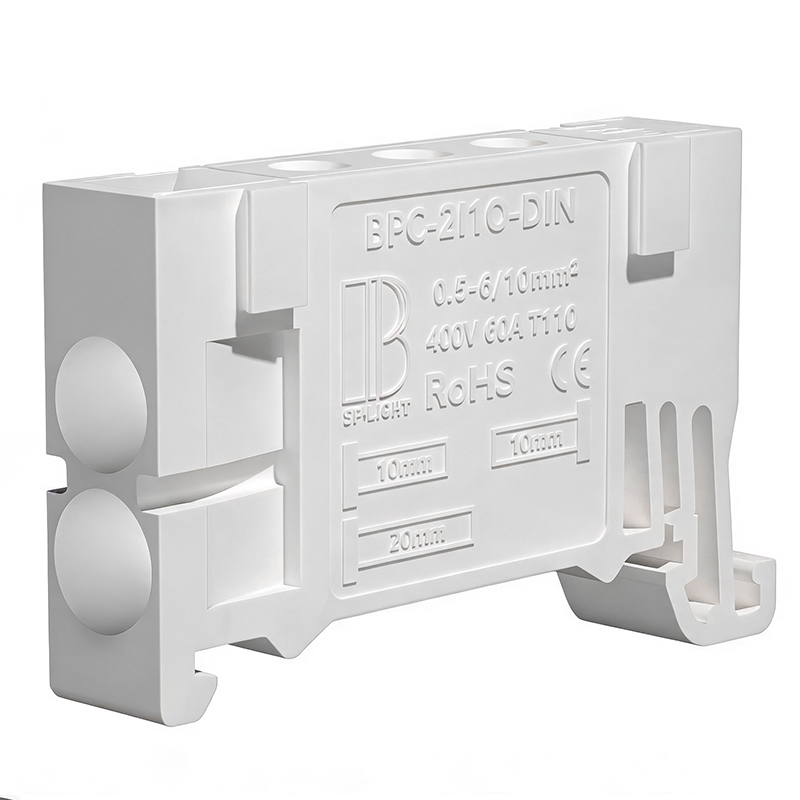

Terminals, terminal blocks and electrical protection for junction boxes
terminal strip
Patented brass terminal blocks designed for public lighting projects, providing effective electrical protection inside enclosures. With individual conductor housing for convenient testing and rewiring, the product boasts wide cable compatibility, extreme temperature and corrosion resistance, fully compliant with European safety norms. Complete product range ensures quick installation and simple maintenance for all outdoor lighting wiring scenarios.
- ⚡ Compact size: only 44.6*9*27.6mm.
- ⚡ Corrosion-resistant material for long service life.
- ⚡ Wide compatibility, fits solid conductors of0.5–10mm².
Specifications
- Solid Conductor
- 0.5-10mm²
- Rated Conductor Cross-section
- 10mm²
- Connection Method
- 2-in-1-out
KEY FEATURES
Fast & Convenient Installation Design: Equipped with flared wire entry guides, locking tabs and Allen-type captive screws for time-saving, efficient assembly. It supports mounting on 35 mm DIN rails.
Ample Electrical Load Specifications: Rated voltage 400 V, maximum current 110 A, insulation withstand voltage 6 kV, meeting high-power working conditions of public lighting.
User-friendly Low-Maintenance Structure: Single conductors can be disconnected separately for inspection. Snap-on wire markers are available as an option to simplify later circuit modification.
APPLICATIONS
Public LED street light projects
Road & tunnel lighting systems
Park & municipal landscape lighting
Traffic signal equipment
Small outdoor control enclosures
New energy auxiliary lighting systems
Industrial low-voltage control cabinets
TECHNICAL SPECIFICATIONS
| Title | Terminals, terminal blocks and electrical protection for junction boxes |
|---|---|
| Connection Quantity | 3 |
| Total Potential Points | 1 |
| Rated Voltage | 400V |
| Rated Current | 57A |
| Solid Conductor | 0.5...10mm²/20...8AWG |
| Stripping Length | 10-30mm |
| Mounting Method | DIN-35 RAIL |
|---|---|
| Insulating Material | PA66 |
| Operating Temperature | -40....110°C |
| Ambient Temperature (Storage) | -25....60°C |
| Product Weight[g] | 25 |
| Packaging Dimensions (LX W X H) [mm] | 44.6*9*27.6 |

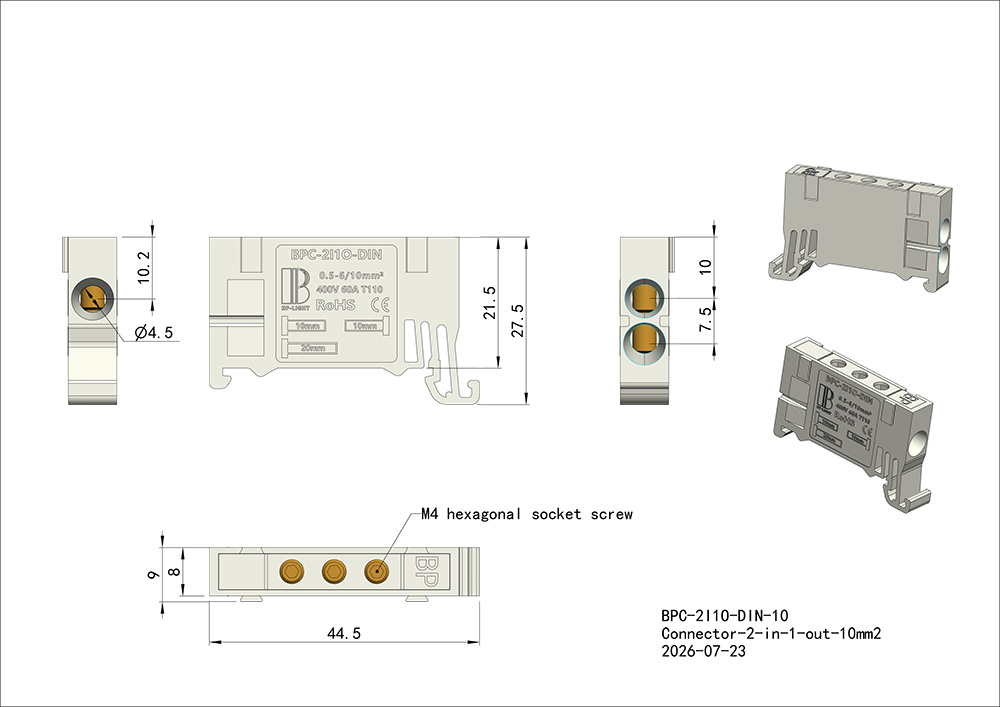

Please refer to the Dimension Drawing for detailed overall dimensions.
Click to enlarge
DOWNLOADS
FAQ
Which DIN rail fits BPC-2I1O-DIN-10 terminal block?
Standard DIN-35 rail mounting.
Wire range compatible with this terminal?
0.5–10mm² copper wire (20–8AWG).
Working temperature range?
-40°C ~ +110°C, PA66 insulating housing.
Suitable for LED street light junction boxes?
Yes, ideal for public lighting enclosure wiring.
Does it adopt patented individual compartment design for each conductor? Fully interchangeable with original SOGEX Copak patented terminals?
Yes, it uses the standard 35mm DIN rail for installation and is fully interchangeable.
How many incoming / outgoing circuits per model?
Supports 2-in-1-out and 3-in-1-out modes.
Are conductors and clamping screws made of integrated solid brass?
The conductive parts are made of brass, and the fastening screws are made of stainless steel.
