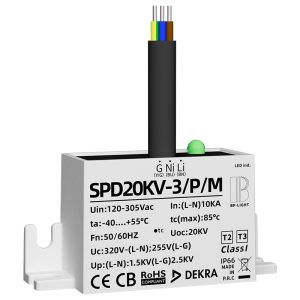

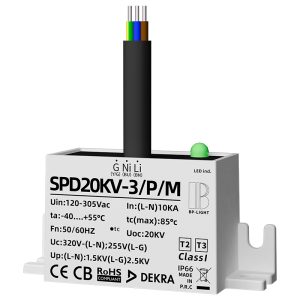

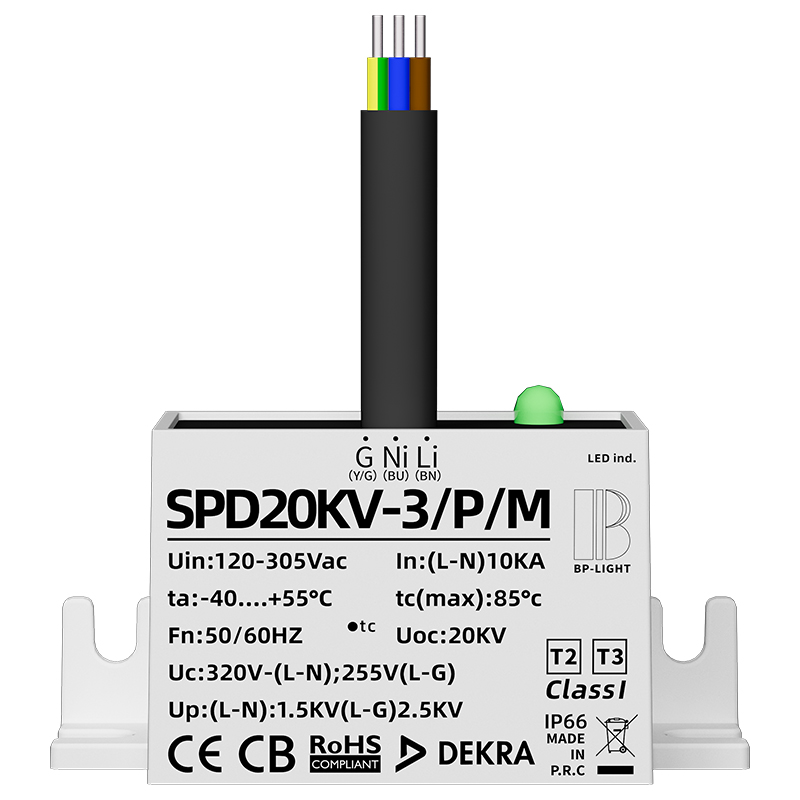

Surge protection device for LED street & garden lights, rubber cable, IP67 waterproof, 3‑wire parallel, 20kV
BP-SPD20KV-3/P/M|Outdoor Street Light Surge Arrester SPD
This 20kV LED SPD comes with rubber cable output and adopts built‑in 3‑core parallel mounting. Boasting stable performance, easy wiring, low cost and simple maintenance, it achieves outstanding waterproofing to safeguard outdoor lighting fixtures.
- ⚡ 20kV surge protector with rubber waterproof cable
- ⚡ 20kV IP67 parallel-mounted Type 2&3 surge protector
- ⚡ 10kA Type 2&3 surge protector with rubber cable
Specifications
- Applicable luminaires
- Class l luminaire
- Certifications
- CB, CE, RoHS
- Connection
- Parallel
- Max input voltage (Un)
- 220-240V
- Max Discharge Current
- 20KA
- Nominal Discharge Current
- 10KA
- SPD Category
- SPD
- IP Rating
- IP67
KEY FEATURES
Maximum continuous operating voltage (AC) Uc (L-N) V]：320/255
Nominal voltage AC 50-60 Hz - Un V]：230/400
Nominal voltage AC 50-60 Hz - Un (L-N) V]：230
Nominal discharge current (8/20)- In (L-N) [kA]：10
Max Discharge Current (8/20) - Imax (L-N) [kA]：20
Rated current load - IL [A]：10
Voltage protection level at In - Up (L-N)[kV]：1.5/2.5
Open circuit Voltage(L-N)[kV]：10
Short-circuit Current rating-Isccr [A]:300
Response time tA (L-N) [ns]：≤25/≤100
TOV Ut 5s (LV systems, withstand) V]：337
TOV Ut 120min (HV systems, withstand) V]:442
Dynamic thermal disconnection：Yes
APPLICATIONS
Outdoor Road Lighting
Tunnel & Underground Traffic Lighting
Landscape Lighting & Outdoor Signage
Outdoor Lighting for Industrial Plants
Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
| Title | Surge protection device for LED street & garden lights, rubber cable, IP67 waterproof, 3‑wire parallel, 20kV |
|---|---|
| Temperature range [ºC] | -40 ...85 |
| Indication System Type | LED |
| Insulating material | PC |
| Housing color | RAL 9003 |
| Enclosure - IP | IP67 |
| Flammability class | UL94V-0 |
|---|---|
| Terminal connection | Pushin(in and out) |
| Wire Connections | Cable (in and out) 18# |
| Product Weight[g] | 67 |
| Packaging Dimensions (LXW X H) [Mm] | 68*23*33.7 |
FAQ
Why use a surge protector with rubber cable outlets?
Rubber cables have good waterproofing, aging resistance, cold and heat resistance, and are more durable and safer for outdoor use.
For luminaires with IP66 waterproof rating, is an IP67 rubber cable surge protector needed inside the lamp cavity?
Yes, it is recommended. The lamp cavity may accumulate moisture and condensation. Using IP67 provides better protection and longer service life.
Can rubber cable surge protectors be used independently outdoors?
Yes, but only if it is designed with IP67 or higher waterproof rating and properly installed.
What is the warranty period for rubber cable parallel surge protectors used independently outdoors?
Normally, the warranty period for surge protectors is 5 years. However, since surge protectors are consumable components, damage caused by lightning strikes is not covered by the warranty.
Is waterproof treatment required for the connection parts of rubber cable parallel surge protectors used outdoors?
Yes, the connection parts must be treated with waterproof glue, heat-shrink tubing or waterproof connectors to avoid water ingress
Does wrong Uc selection lead to frequent SPD failure?
Low Uc causes continuous leakage, overheating and burnout under grid voltage fluctuation.
