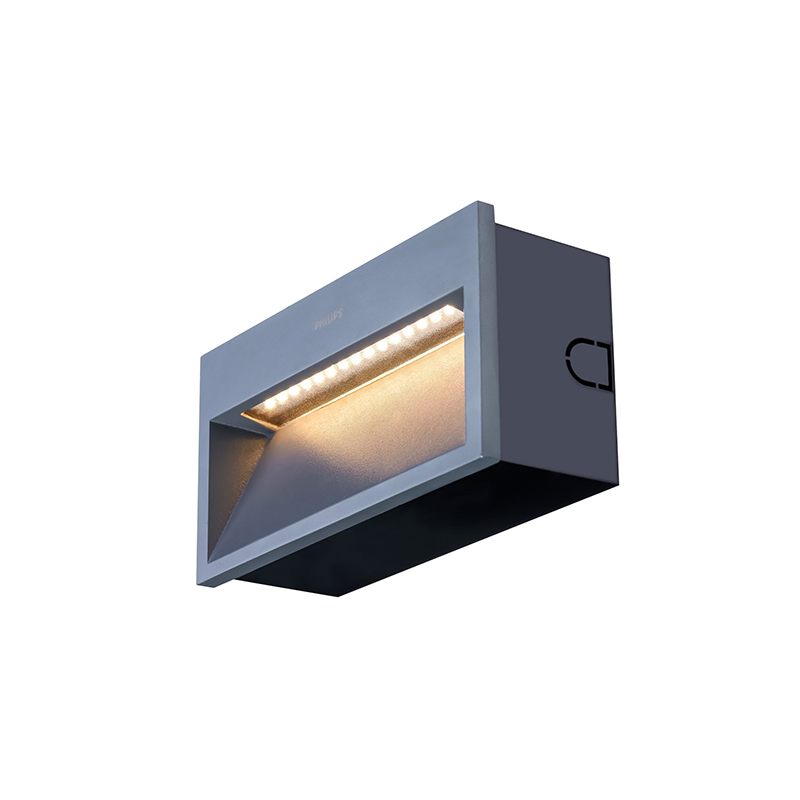

Philips Uni Wall Mount Recessed: Urban recessed wall mount applies on surface, e.g., parking garages, entrances, outdoor terrace and wall in garden.
BWP400
Philips Uni Wall Mount BWP400 is the UniUrban LED landscape wall luminaire. It adopts a sturdy, elegant structure delivering soft and comfortable lighting. Standard 12W and optional 20W ETO versions, CCT options: 2700K/3000K/4000K/5000K. CRI70, SDCM≤5, IP65 & IK08 protection, 50,000hrs L70B50 lifespan. Cost-effective outdoor wall light for landscape, hotel, plaza and residential safety lighting.
- ⚡ Elegant & robust wall fixture
- ⚡ IP65 & IK08 outdoor rated
- ⚡ Multiple CCT selections available
Specifications
- Application Scenarios
- Outdoor
- LED Light Types
- Landscape LED Light
KEY FEATURES
Sleek and solid housing design generates soft, pleasant illumination, providing a premium and economical LED wall lighting solution for exterior landscape projects.
Two power choices: standard 12W and customized 20W ETO, wide CCT range from 2700K to 5000K to meet diverse ambiance design demands.
CRI70 with SDCM ≤5, stable light output, long service life of 50,000 hours L70B50 at Ta=35°C for long-term reliable outdoor operation.
Wide operating temperature range from -40°C to 50°C, IP65 dust/waterproof and IK08 impact resistance, adapting to harsh outdoor environmental conditions.
Compact dimension of 205 × 107 ×71mm and lightweight 0.9kg, easy wall mounting, ideal for decorative and safety lighting scenarios.
APPLICATIONS
Garden, courtyard and plaza landscape lighting
Hotel & business district facade lighting
Residential area safety decorative lighting
TECHNICAL SPECIFICATIONS
| Title | Philips Uni Wall Mount Recessed: Urban recessed wall mount applies on surface, e.g., parking garages, entrances, outdoor terrace and wall in garden. |
|---|---|
| Product Series | BWP400 |
| Luminous Efficacy | 48 lm/W |
| Power | 12W (Standard) / 20W (ETO) |
| Product Weight | 0.9Kg |

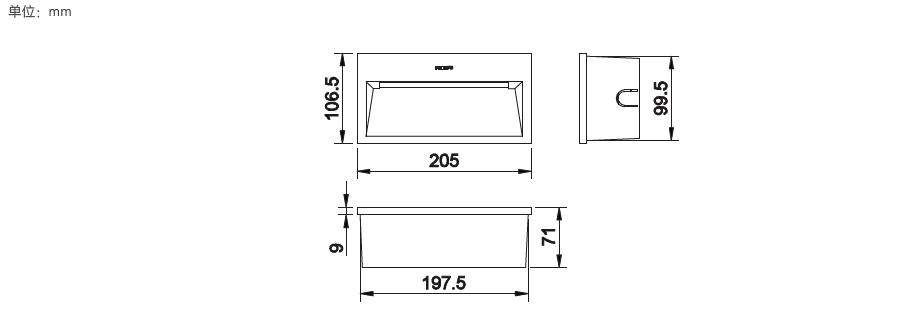

| Product Dimension | 205 x 107 x 71mm |
| Lifetime | 50,000h L70B50 @ Ta=35°C |
| Operating Temperature | -40°C < Ta < 50°C |
|---|---|
| CRI | CRI 70 |
| CCT | 2700K (ETO), 3000K (Standard), 4000K (Standard), 5000K (ETO) |
| SDCM | 5 |
| Luminous Flux | 580lm @3000K 12W; 960lm @3000K 20W |
| IP Rating | IP65 |
| IK Rating | IK08 |
Junction Box Module Display
Click to enlarge
DOWNLOADS
FAQ
Q1: What are the available power options of BWP400?
A1: Standard 12W and customized 20W (ETO version).
Q2: What protection class does BWP400 have?
A2: IP65 dust and water resistance, IK08 impact protection.
Q3: What is the rated lifetime of BWP400?
A3: 50,000 hours L70B50 at ambient temperature of 35°C.
