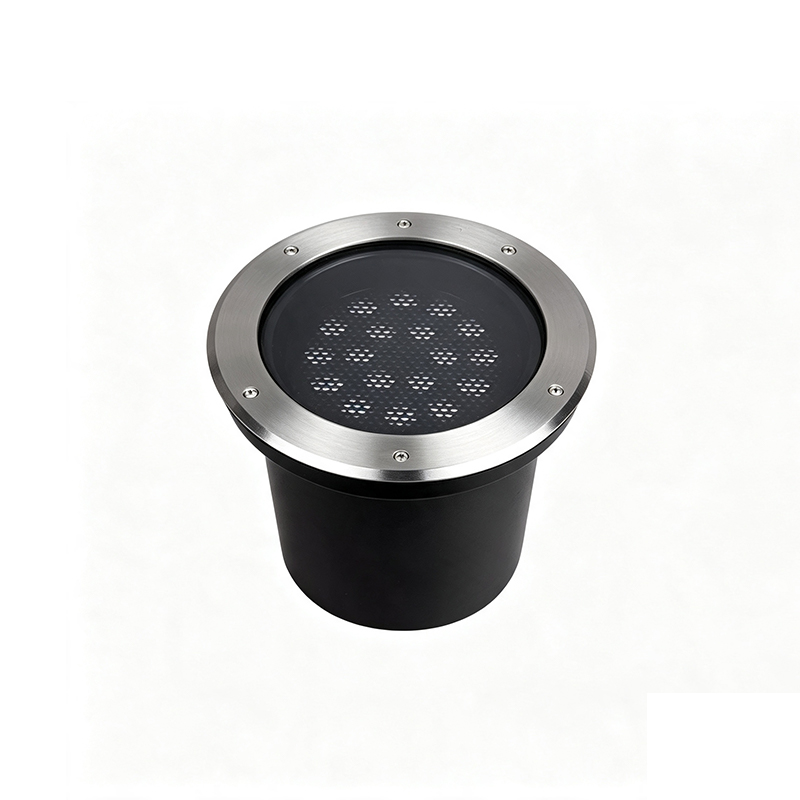

Philips Uni In-Ground BBP341/342/343/344 G2
BBP341/342/343/344
Uni In-Ground BBP341/342/343/344 G2, circular LED inground light (Yoyan series). Available in 6W,12W,18W,36W. It delivers uplight for facade lighting. Die-cast aluminum housing + 304 stainless steel trim, IP67, IK10. Tempered glass & PC lens, optional honeycomb anti-glare grille. With PC burial box and IP68 cable connector. Wide temp range -40~50β, 50000h lifespan, 3-year warranty, CB/EMC/CE/CCC certified. For outdoor public areas & building facades.
- β‘ Heavy-duty anti-impact structure
- β‘ Reliable outdoor waterproof performance
- β‘ Multiple power & CCT options
Specifications
- Application Scenarios
- Outdoor
- LED Light Types
- Landscape LED Light
KEY FEATURES
Robust build with die-cast aluminum housing & 304 stainless steel trim, rated IK10 for heavy impact resistance.
IP67 ingress protection paired with IP68 waterproof connector, reliable for long-term outdoor buried installation.
Thick tempered glass + high-quality PC lens, optional honeycomb grille for effective anti-glare performance.

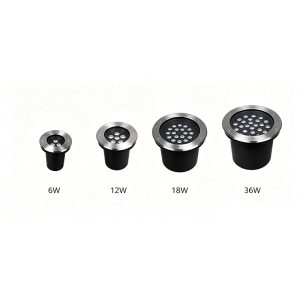

Full power range 6W/12W/18W/36W, 3000K/4000K options, meets diverse facade uplighting demands.
50,000-hour lifespan, 3-year warranty, CB/CE/CCC/EMC certified with 1KV/2KV surge protection.
APPLICATIONS
Outdoor public areas
Building facades
TECHNICAL SPECIFICATIONS
Product Model 12NC:
- BBP341 G2 D120 30K 110-240V 20 6W 911401901053
- BBP341 G2 D120 30K 110-240V 20HC 6W 911401901054
- BBP341 G2 D120 40K 110-240V 20 6W 911401901055
- BBP341 G2 D120 40K 110-240V 20HC 6W 911401901056
- BBP342 G2 D140 30K 110-240V 20 12W 911401901057
- BBP342 G2 D140 30K 110-240V 20HC 12W 911401901058
- BBP342 G2 D140 40K 110-240V 20 12W 911401901059
- BBP342 G2 D140 40K 110-240V 20HC 12W 911401901060
- BBP343 G2 D180 30K 110-240V 20 18W 911401901061
- BBP343 G2 D180 30K 110-240V 20HC 18W 911401901062
- BBP343 G2 D180 40K 110-240V 20 18W 911401901063
- BBP343 G2 D180 40K 110-240V 20HC 18W 911401901064
- BBP343 G2 D180 30K 24V DMX 20 18W 911401901065
- BBP343 G2 D180 30K 24V DMX 20HC 18W 911401901066
- BBP343 G2 D180 40K 24V DMX 20 18W 911401901067
- BBP343 G2 D180 40K 24V DMX 20HC 18W 911401901068
- Only partial models shown, please contact us for full options.
Junction Box Module Display
Click to enlarge
FAQ
Q1: What is the IP rating?
A1: IP67, with IP68 waterproof connector.
Q2: What are the power options?
A2: 6W,12W,18W,36W for selection.
Q3: Where can this light be applied?
A3: Outdoor public zones and building facades.
