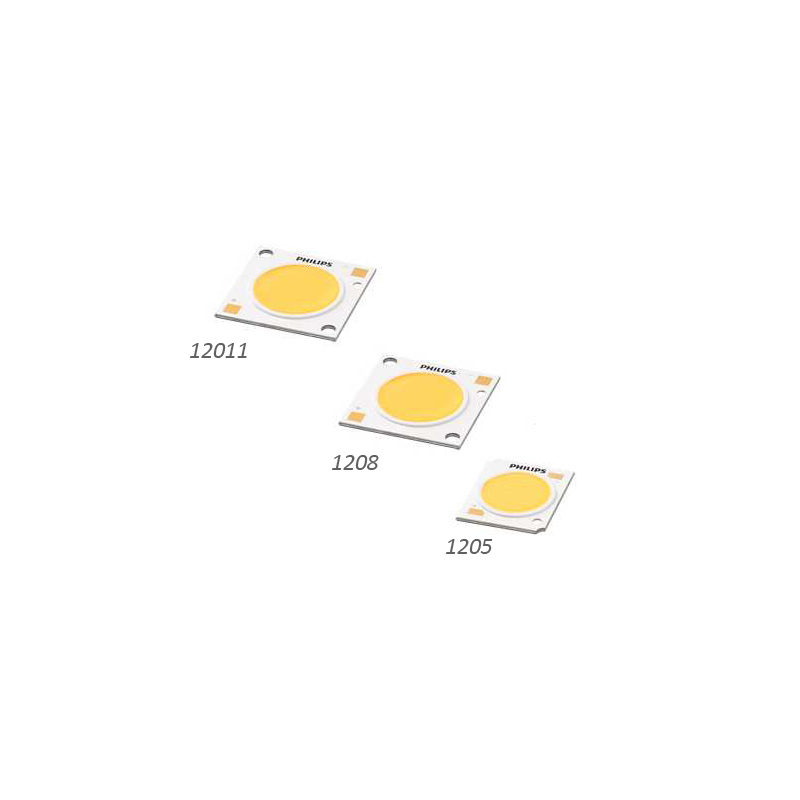

PHILIPS Spotlight Modules Fortimo SLM Food Gen7
Spotlight Modules
The pleasure of a well-stocked and beautifully presented produce department is highly appreciated by the customers and can’t be replaced by online sales. Therefore, fresh food area is one of the main reasons for shopper to make a trip to the retail and further set up a loyalty of the shopper to a specific retail. With the new Fortimo SLM Food Gen7 range introduction, we will help our customers create a perfect ambience in food area with an optimized light solution(module) to differentiate from other retailers and enhance loyalty of their customers. The new Fortimo SLM Food Gen7 range extend from previous Meat & Bakery application to Life Sea Food, Iced Sea Food and Fresh Vegetables. The Fortimo LED SLM portfolio is compatible with multiple Xitanium & Certa LED drivers. For a detailed overview of all available indoor point drivers, pls go to the xitanium indoor point driver section at pages 41-49 or the certa indoor point driver section at pages .To find the best driver module combination for your application, the Easy Design-in Tool is available via philips.com/technology. Below table shows which Xitanium and Certa LED driver window is compatible by default with Fortimo LED SLM.
- ⚡ Special spectrum for fresh food retail
- ⚡ Covers meat, seafood, bakery & fruit
- ⚡ 50,000hrs long B50/L70 lifetime
Specifications
- Model
- Fortimo SLM Food Gen7
KEY FEATURES
Optimized dedicated food spectrum, vividly restores colors of meat, bakery, seafood and fruits to attract retail shoppers and boost customer loyalty.
Wide product portfolio covering multiple power grades, flexible lumen options to match diverse fresh food showcase luminaire designs.
Stable high CRI performance, 3 SDCM color consistency, uniform light output for consistent food display effect across retail stores.
Long B50/L70 lifetime over 50,000 hours at 85°C Tc, lowering maintenance frequency and total operating cost for retail shops.
Extended application range, supporting meat, bakery, live/iced seafood and vegetables, one COB series for full fresh food zone.
APPLICATIONS
Supermarket fresh meat and bakery display lighting
Retail live seafood and iced seafood counters
Fruit and fresh vegetable showcase illumination
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- Fortimo SLM C 930 FPR 1205 L13 2024 G7 929002144106
- Fortimo SLM C 930 FPR 1208 L15 2024 G7 929002144206
- Fortimo SLM C 930 FPR 1211 L19 2828 G7 929002144306
- Fortimo SLM C 925 FWW 1205 L13 2024 G7 929002144406
- Fortimo SLM C 925 FWW 1208 L15 2024 G7 929002144506
- Fortimo SLM C 925 FWW 1211 L19 2828 G7 929002144606
- Fortimo SLM C 950 FLS 1205 L13 2024 G7 929002144706
- Fortimo SLM C 950 FLS 1208 L15 2024 G7 929002144806
- Fortimo SLM C 950 FLS 1211 L19 2828 G7 929002144906
- Fortimo SLM C 865 F15 1205 L13 2024 G7 929002145006
- Fortimo SLM C 865 F15 1208 L15 2024 G7 929002145106
- Fortimo SLM C 865 F15 1211 L19 2828 G7 929002145206
- Fortimo SLM C 930 FVF 1205 L13 2024 G7 929002145306
- Fortimo SLM C 930 FVF 1208 L15 2024 G7 929002145406
- Fortimo SLM C 930 FVF 1211 L19 2828 G7 929002145506
Product specifications
Click to enlarge
