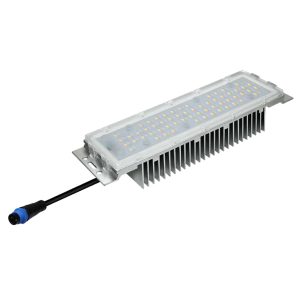

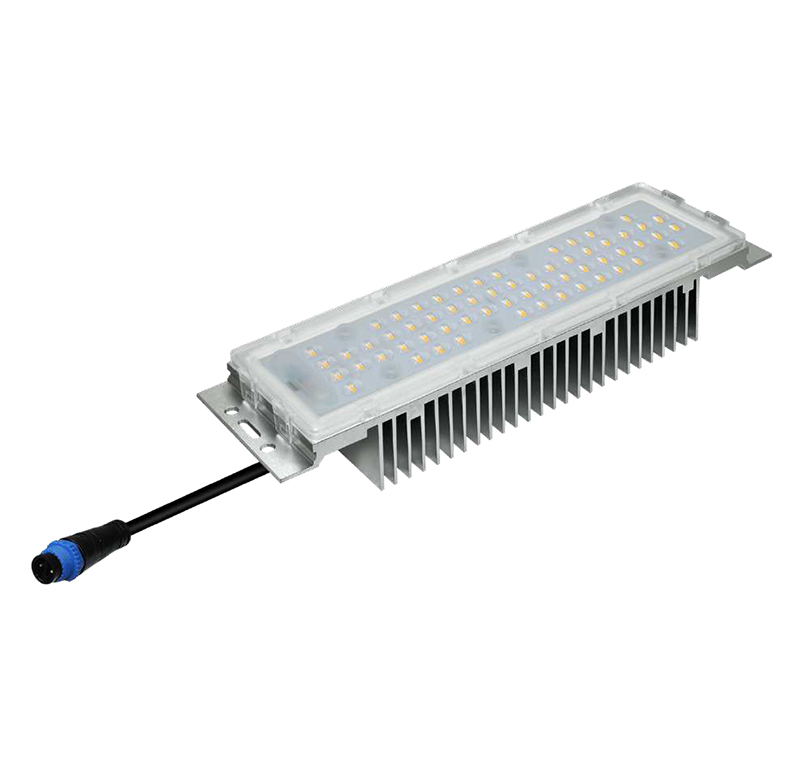

PHILIPS Outdoor Modules Fortimo FastFlex IP
Outdoor Modules
Fortimo FastFlex IP Standard is an integrated module solution with IP66 protection, excellent optical and heat management that offers high energy efficacy and high quality of light. The Fortimo FastFlex IP range consists of two product categories based on their energy efficacy: “Standard” with typical energy efficacy of 140lm/W and, “Ultra High Efficacy” (UHE) with a best-in-class energy efficacy of 170lm/W. Fortimo FastFlex IP products are designed to enable optimum LED lighting in outdoor and industry applications. A range of compatible IP67 Xitanium drivers complement these modules to further differentiate your lighting solution on efficacy, lifetime and robustness under extreme temperature conditions.
- ⚡ IP66 protection & 4KV surge guard
- ⚡ Up to 175 lm/W high efficacy
- ⚡ 5-year complete system warranty
Specifications
- Model
- Fortimo FastFlex IP
KEY FEATURES
It adopts IP66 protection and built-in 4KV surge protection, maintaining stable performance over the whole service life.
Boasts top-tier energy efficacy up to 175 lm/W, greatly cutting energy consumption for outdoor & industrial lighting.
Matches IP67 Xitanium drivers, ensuring reliable operation even under harsh and extreme temperature environments.
Supports dimming drivers for flexible lumen adjustment, meeting variable brightness demands of diverse lighting projects.
Integrated module design simplifies installation and maintenance, effectively saving luminaire assembly time and labor cost.
APPLICATIONS
Outdoor roadway and municipal street lighting
Industrial workshop and factory highbay lighting
Public parking lot and large area site lighting
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- Fortimo FastFlex IP 6KLM 730 II-M 929001427880
- Fortimo FastFlex IP 6KLM 730 II-S 929001427780
- Fortimo FastFlex IP 6KLM 730 III-M 929001428080
- Fortimo FastFlex IP 6KLM 730 III-S 929001427980
- Fortimo FastFlex IP 6KLM 740 II-M 929001428280
- Fortimo FastFlex IP 6KLM 740 II-S 929001428180
- Fortimo FastFlex IP 6KLM 740 III-M 929001428480
- Fortimo FastFlex IP 6KLM 740 III-S 929001428380
- Fortimo FastFlex IP 6KLM 757 II-M 929001428680
- Fortimo FastFlex IP 6KLM 757 II-S 929001428580
- Fortimo FastFlex IP 6KLM 757 III-M 929001428880
- Fortimo FastFlex IP 6KLM 757 III-S 929001428780
- Only partial models shown, please contact us for full options.

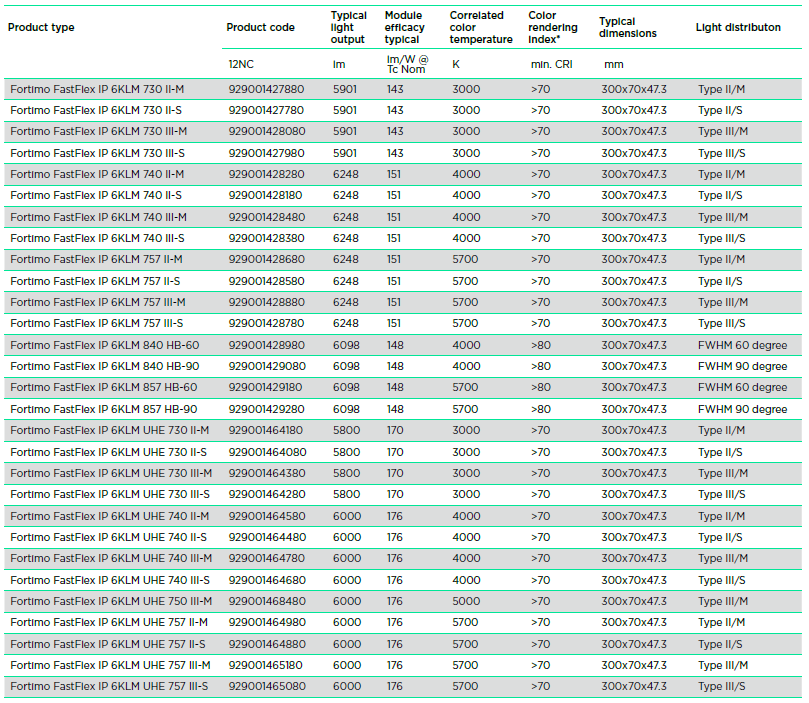

Product specifications
Click to enlarge
FAQ
Q1: What protection rating does Fortimo FastFlex IP have?
A1: It features IP66 protection together with built-in 4KV surge protection.
Q2: What is the maximum energy efficacy of this module series?
A2: The Ultra High Efficacy version can reach up to 175 lm/W.
Q3: What drivers are recommended to pair with FastFlex IP modules?
A3: It works with compatible IP67 Xitanium LED drivers for the full lighting system.
