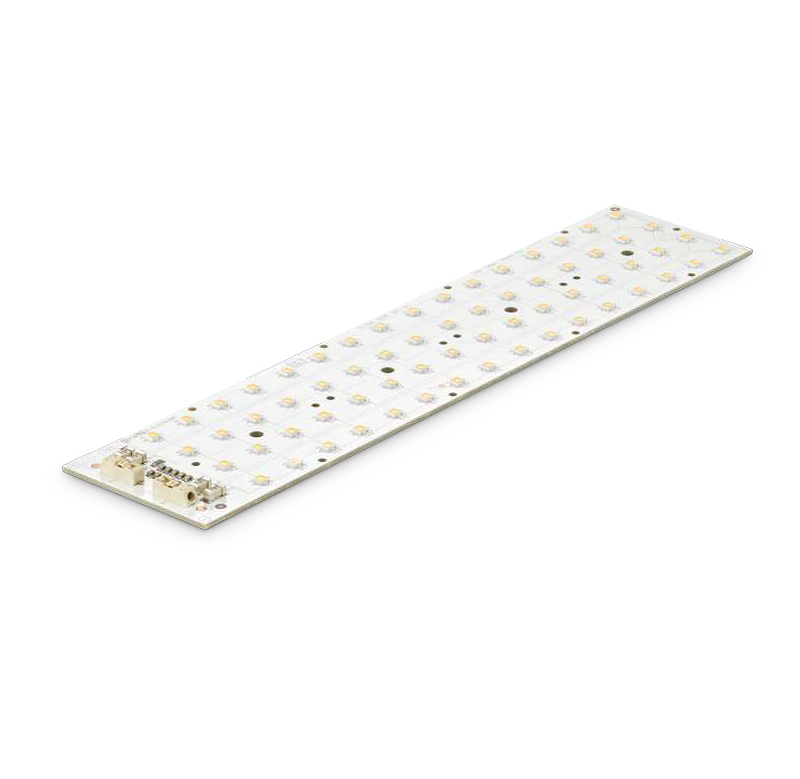

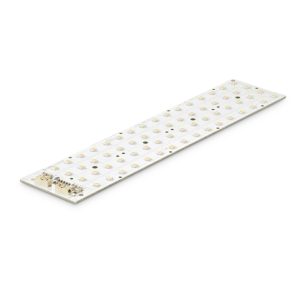

PHILIPS Outdoor Modules Fortimo FastFlex DHE G4
Outdoor Modules
The FastFlex DHE enables the use of third-party lenses for an unlimited range of optical configurations.Also adequate for outdoor and highbay applications.
- β‘ 1Unlimited optical configurations
- β‘ High efficacy for highbay & outdoor
- β‘ Works with Xitanium LED drivers
Specifications
- Model
- Fortimo FastFlex DHE G4
KEY FEATURES
It supports third-party lenses, delivering unlimited optical configurations to meet diversified lighting design demands.
High luminous efficacy up to 178 lm/W, offering energy-saving performance for outdoor and highbay lighting fixtures.
Multiple CCT options of 3000K,4000K,5000K with CRIοΌ80 to provide high-quality light rendering.
Compatible with various Xitanium LED drivers for flexible system matching and convenient luminaire development.
Uniform compact dimension 223Γ49.5Γ4.25mm, simple to install and integrate into lamp housings.
APPLICATIONS
Industrial high bay and low bay lighting projects
Outdoor roadway and public area lighting
Warehouse, depot and large space illumination
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- Fortimo FastFlex LED 4x16/840 DHE G4 929001616606
- Fortimo FastFlex LED 4x16/850 DHE G4 929001616706
- Fortimo FastFlex LED 4x16/830 DHE G4 929001616506

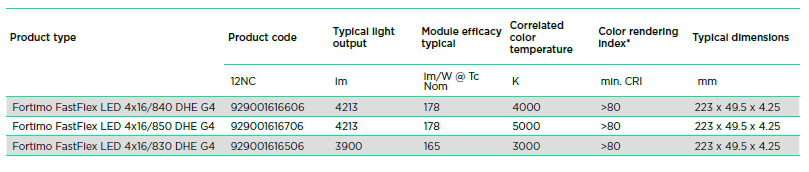

Product specifications
Click to enlarge
FAQ
Q1: What optical design features does FastFlex DHE G4 have?
A1: It supports third-party lenses for unlimited optical configurations.
Q2: What are its applicable lighting fields?
A2: It is suitable for both outdoor lighting and highbay lighting applications.
Q3: What drivers can be matched with this LED module?
A3: It is compatible with a full range of Xitanium LED drivers.
