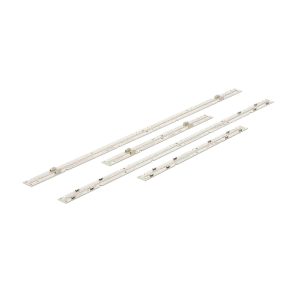

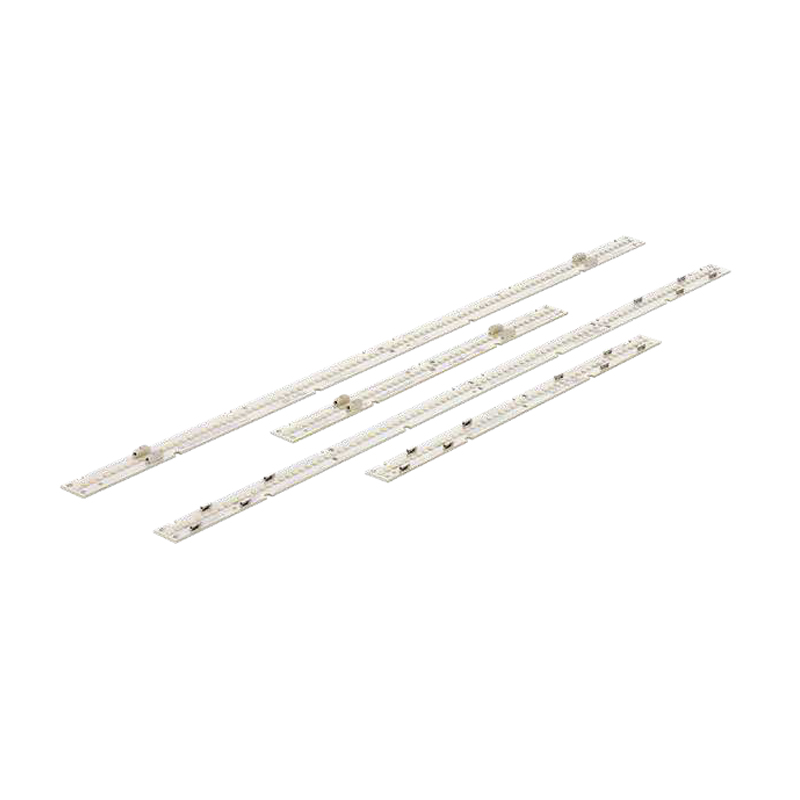

PHILIPS Linear Modules Fortimo LED strip BioUp CED
Linear Modules
A new concept to our HCL range: BioUp Cyan Enhanced Dynamic. Now integrated in our Fortimo LED Strip platform, BioUp CED is designed to work together with our Xitanium FlexTune drivers.The system provides a correlated color temperature (CCT) tunable module (from 2700 K to 5000 K) with enhanced melanopic-DER (up to 0.95 at 5000 K).
- β‘ BioUp CED dynamic HCL LED strip
- β‘ Tunable CCT: 2700Kβ5000K
- β‘ Up to 0.95 high melanopic-DER
Specifications
- Model
- Fortimo LED strip BioUp CED
KEY FEATURES
Fortimo LED Strip BioUp CED belongs to the HCL portfolio, working in synergy with Xitanium FlexTune drivers to deliver dynamic human-centric lighting systems.
It supports CCT tuning from 2700K to 5000K and achieves enhanced melanopic-DER up to 0.95 at 5000K to regulate human circadian rhythm.
Built on the mature Fortimo LED strip platform, it has 1100lm and 2200lm options, with 145 lm/W efficacy and stable 3 SDCM color consistency.
APPLICATIONS
Dynamic HCL office lighting projects
Healthcare circadian rhythm lighting
WELL-certified smart building lighting
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- ortimo LED Strip CED 1ft MF FC HV5 929002924006
- ortimo LED Strip CED 1ft MF FC LV5 929002924206
- ortimo LED Strip CED 2ft MF FC HV5 929002924106
- ortimo LED Strip CED 2ft MF FC LV5 929002924306

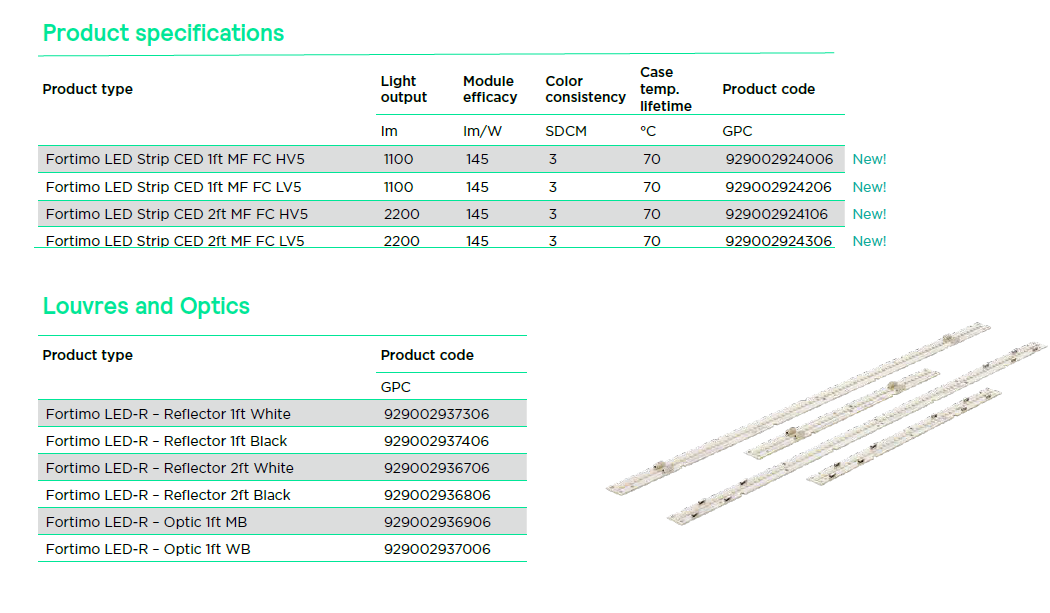

Product specifications
Click to enlarge
FAQ
Q1: What does BioUp CED stand for?
A1: It stands for BioUp Cyan Enhanced Dynamic, a dynamic human-centric lighting solution in the Fortimo LED strip HCL family.
Q2: What is the CCT range and melanopic-DER performance?
A2: CCT is tunable from 2700K to 5000K, and the melanopic-DER can reach up to 0.95 at 5000K.
Q3: Which driver does Fortimo LED Strip BioUp CED work with?
A3: It is designed to pair with Xitanium FlexTune drivers to realize complete dynamic human-centric lighting systems.
