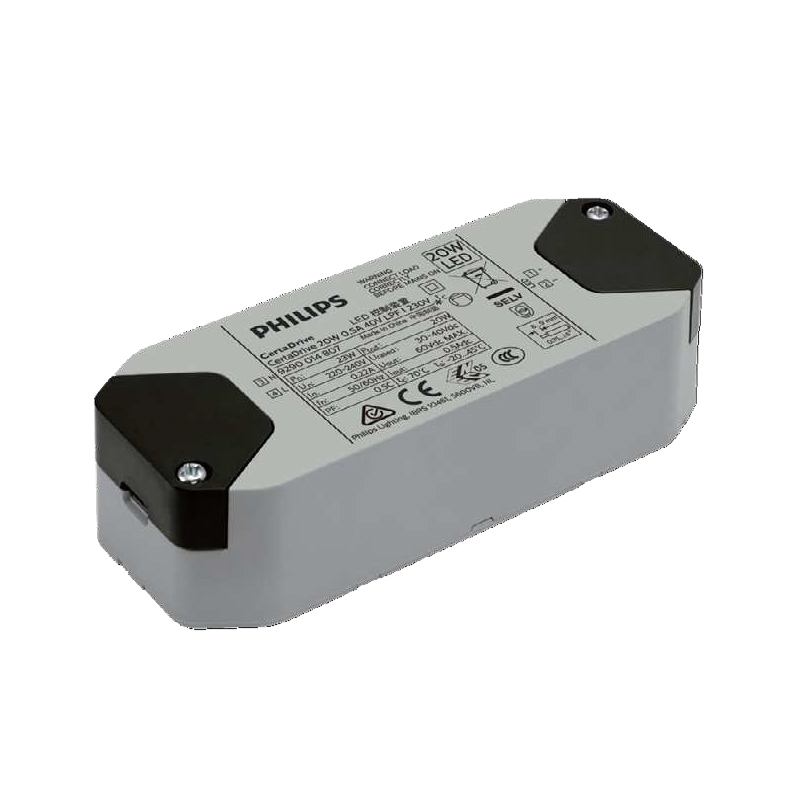

PHILIPS LED Driver CertaDrive LPF G3/G4
CertaDrive LPF G3/G4
Philips CertaDrive LED Point drivers are designed to operate with LED COB solutions used both in built-in and independent applications such as down light, spot light and track light. CertaDrive drivers have common features such as low ripple output current, single output current and 30,000 hours lifetime. They are specifically designed to ensure great EMI performance, high robustness and safe usage.
- β‘ Low ripple below 5% for stable output
- β‘ 30000βhour lifespan with great EMI performance
- β‘ Costβeffective for various luminaire designs
Specifications
- Model
- CertaDrive LPF G3/G4
- Application Scenarios
- Indoor
KEY FEATURES
Class II application
Built in and independent
Low Power Factor
Low Ripple less than 5%
30,000 hours lifetime
Provides options for different luminaire designs
Great EMI performance for easy design-in
Optimized cost/performance ratio
Peace of mind with proven reliability
APPLICATIONS
Down lighting
Spot lighting
Track lighting
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- CertaDrive 4W 0.1A 40V LPF I 230V (G4),929003460280 (G4)
- CertaDrive 6W 0.15A 40V LPF I 230V (G4),929003460380 (G4)
- CertaDrive 8W 0.2A 40V LPF I 230V (G4),929003460480 (G4)
- CertaDrive 10W 0.25A 40V LPF I 230V (G4),929003460580 (G4)
- CertaDrive 12W 0.3A 40V LPF I 230V (G4),929003460680 (G4)
- CertaDrive 14W 0.35A 40V LPF I 230V (G3),929002878580 (G3)
- CertaDrive 16W 0.4A 40V LPF I 230V (G3),929002878680 (G3)
- CertaDrive 18W 0.45A 40V LPF I 230V (G3),929002878780 (G3)
- CertaDrive 20W 0.5A 40V LPF I 230V (G3),929002878880 (G3)

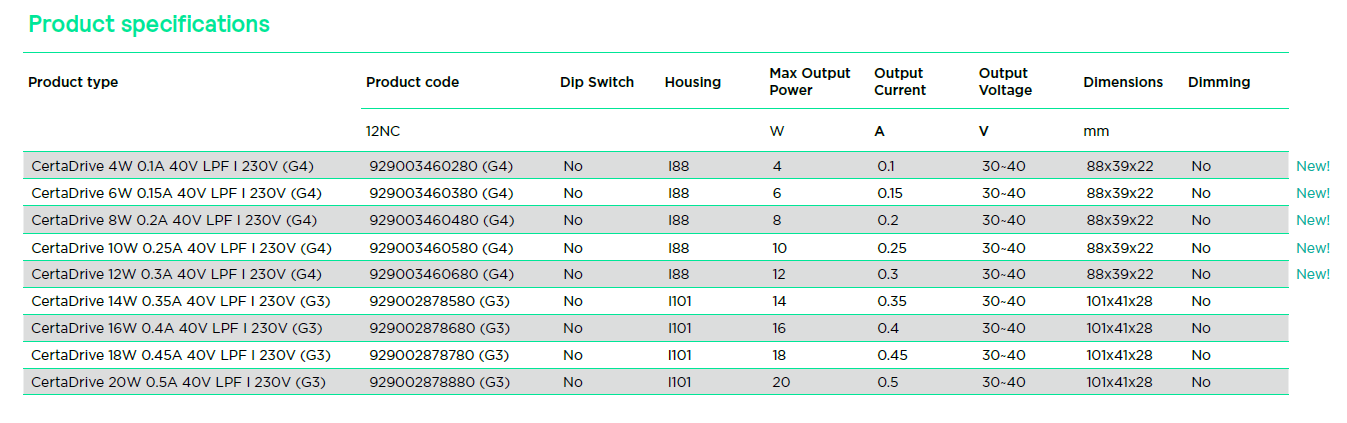

Product specifications
Click to enlarge
FAQ
Q1: What are typical applications for this driver?
A1: It applies to down, spot and track lighting.
Q2: Does CertaDrive LPF G3/G4 support dimming?
A2: No, this series does not support dimming.
Q3: What is its output voltage working range?
A3: Output voltage ranges from 30V to 40V.
