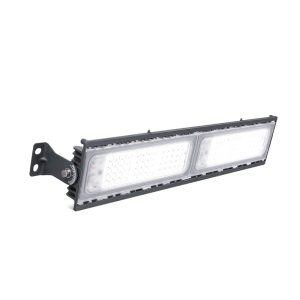

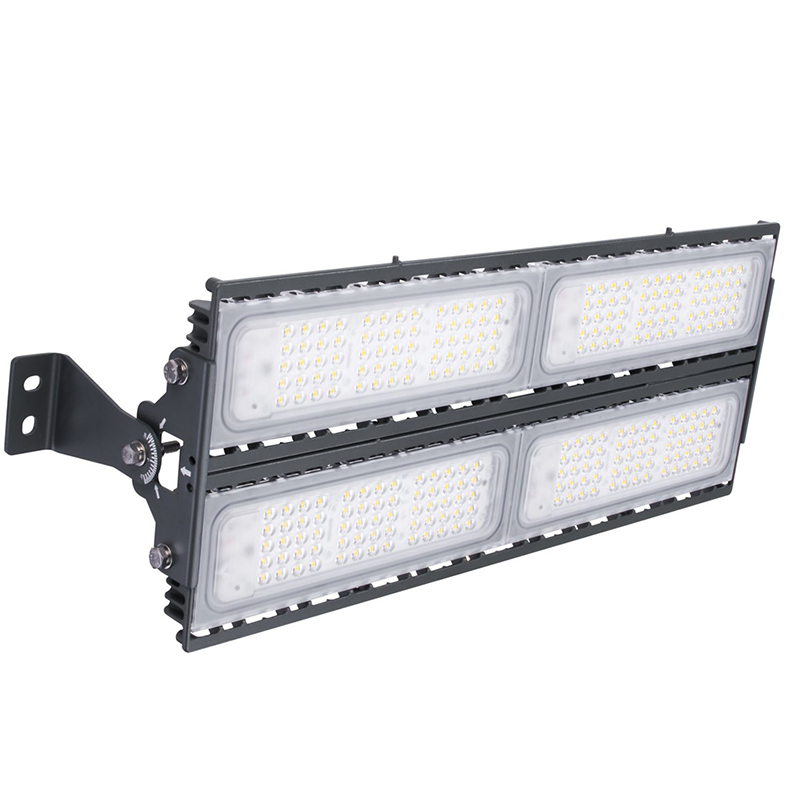

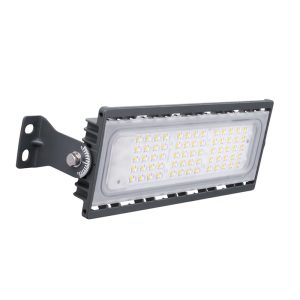

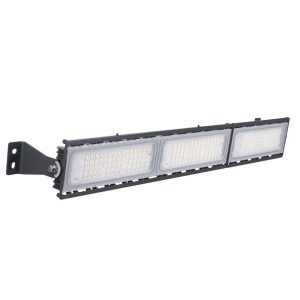

Philips FlowBase G2 Lighting up tunnels for optimum safety
BWP352 G2 Tunnel and underpass lighting
Philips BWP352 G2 LED tunnel light (FlowBase G2) delivers reliable & high-efficiency lighting for tunnel projects. It reaches up to 32,000lm with 140lm/W high efficacy, supporting 1-10V dimming. Featuring IP66, IK08 rating, adjustable ±60° bracket, ADC1 die-cast aluminum housing. Available in 60/120/180/220W variants, long 55,000h lifespan, ideal for tunnel and urban underpass lighting.
- ⚡ High luminous efficacy 140lm/W
- ⚡ ±60° adjustable mounting bracket
- ⚡ IP66 & IK08 rugged protection
Specifications
- Application Scenarios
- Outdoor
- LED Light Types
- Tunnel and underpass lighting
KEY FEATURES
Adopts professional optical design with anti-yellowing PC lens, supports 1-10V dimming for flexible brightness control to match tunnel lighting demand.
Built with high-grade Philips Xitanium IP67 driver, stable performance and strong 6KV/10KV surge protection for harsh tunnel environments.
ADC1 low-copper die-cast aluminum housing, equipped with breathing valve to prevent moisture condensation inside the luminaire.
Wide operating temperature range from -40℃ to 55℃, long 55,000h L70B50 lifespan, reducing maintenance and replacement costs greatly.
Multiple power options and customizable light distribution, flexible installation angle to fit various tunnel and underpass lighting layouts.
APPLICATIONS
Suitable for tunnel and urban underpass road lighting.
TECHNICAL SPECIFICATIONS
Product Information：:
- BWP352 LED57/NW 40W 220-240V DM2 G2 911401629807
- BWP352 LED70/NW 50W 220-240V DM2 G2 911401629907
- BWP352 LED84/NW 60W 220-240V DM2 G2 911401630007
- BWP352 LED104/NW 70W 220-240V DM2 G2 911401630207
- BWP352 LED116/NW 80W 220-240V DM2 G2 911401630307
- BWP352 LED130/NW 90W 220-240V DM2 G2 911401630407
- BWP352 LED139/NW 100W 220-240V DM2 G2 911401630507
- BWP352 LED152/NW 110W 220-240V DM2 G2 911401630607
- BWP352 LED162/NW 120W 220-240V DM2 G2 911401630707
- BWP352 LED212/NW 150W 220-240V DM2 G2 911401630907
- BWP352 LED245/NW 180W 220-240V DM2 G2 911401631007
- BWP352 LED289/NW 200W 220-240V DM2 G2 911401631207
- BWP352 LED316/NW 220W 220-240V DM2 G2 911401631307
- BWP352 LED84/NW 60W 220-240V DTXB G2 911401630107
- BWP352 LED162/NW 120W 220-240V DTXB G2 911401630807
- BWP352 LED245/NW 180W 220-240V DTXB G2 911401631107
- BWP352 LED316/NW 220W 220-240V DTXB G2 911401631407

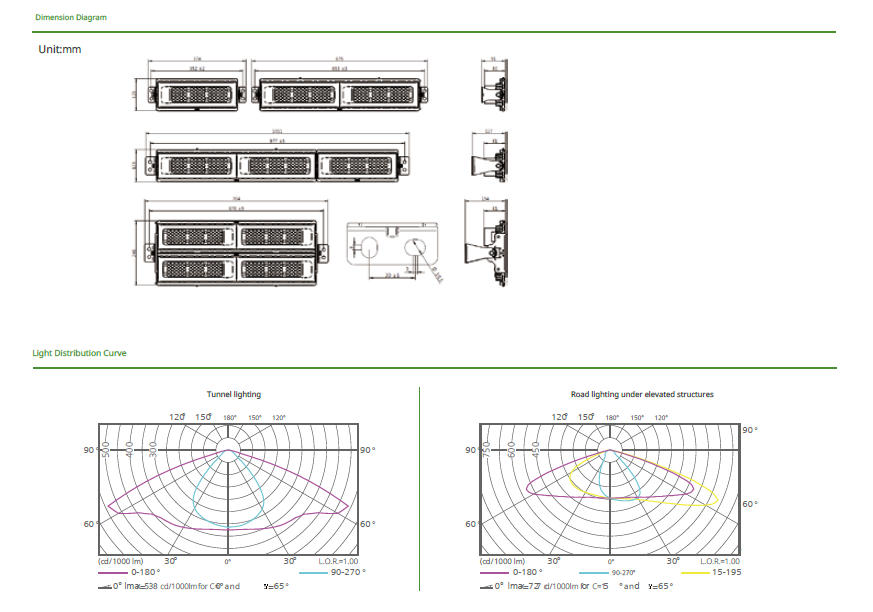

Junction Box Module Display
Click to enlarge
FAQ
Q1: What is the luminous efficacy of BWP352 G2?
A1: Typical system efficacy reaches 140lm/W, offering outstanding energy-saving performance.
Q2: What IP and IK protection level does this tunnel light have?
A2: It has IP66 dust & water resistance and IK08 mechanical impact protection.
Q3: Can the fixture angle be adjusted during installation?
A3: Yes, the mounting bracket supports ±60° angle adjustment for flexible light aiming.
