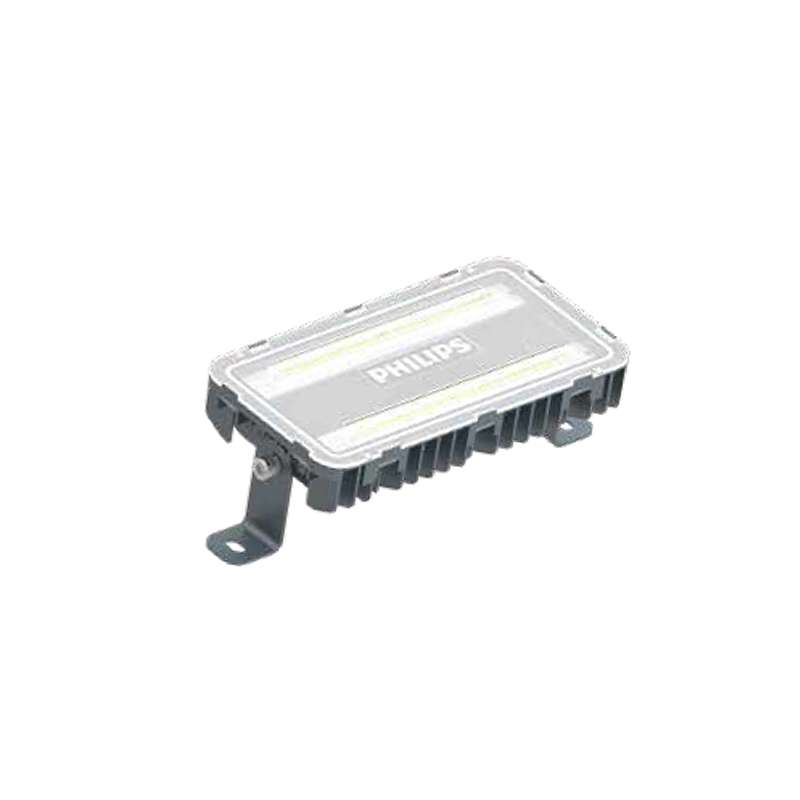

Philips BWP150 G3Lighting up tunnels for optimum safety
BWP150 G2 Tunnel and underpass lighting
BWP150 G3 is Philips’ latest LED tunnel lighting system, engineered for efficient, eco-friendly illumination. It delivers over 130lm/W luminous efficacy, with 30W & 40W power options. Featuring flicker-free driver, 1-10V dimming and surge protection, IP66 & IK06 rating. Its premium build ensures long service life for smart, sustainable tunnel and underpass projects.
- ⚡ ≥130lm/W high luminous efficacy
- ⚡ Flicker-free driver & surge protection
- ⚡ 1-10V dimming for smart control
Specifications
- Application Scenarios
- Outdoor
- LED Light Types
- Tunnel and underpass lighting
KEY FEATURES
High luminous efficacy above 130lm/W, available in 30W and 40W variants to match different tunnel dimension requirements.
Adopts flicker-free driving technology to reduce visual fatigue and improve driving safety inside tunnel environments.
Built-in surge protection resists voltage fluctuations, extending lamp service life and lowering maintenance frequency.
Supports 1-10V dimming interface, easy integration with intelligent lighting systems for flexible energy management.
IP66 dust/waterproof and IK06 impact resistance, 50,000h lifespan, stable performance under -35℃~50℃.
APPLICATIONS
Interior lighting of urban tunnels
Underground passage illumination
General flood lighting projects
TECHNICAL SPECIFICATIONS
Product Information：:
- BWP150 78LED NW 30W G3 78*0.38W LED 911401718654
- BWP150 78LED WW 30W G3 78*0.38W LED 911401718664
- BWP150 90LED NW 40W G3 90*0.38W LED 911401718674
- BWP150 90LED NW 40W G3 90*0.38W LED 911401718684
Junction Box Module Display
Click to enlarge
FAQ
What is the difference between Type 1 and Type 2 SPD?
Type 1 SPDs are designed for locations exposed to direct lightning strikes (main distribution boards), while Type 2 SPDs protect against residual overvoltages and switching surges in sub-distribution boards.
How do I choose the right SPD for my system?
Consider your system voltage, exposure level, and installation location. Our engineering team can help you select the correct type, discharge capacity and protection level for your application.
How often should SPD be replaced?
SPDs should be inspected regularly. The visual status indicator shows when a module needs replacement. With replaceable plug-in modules, maintenance is quick and cost-effective.
