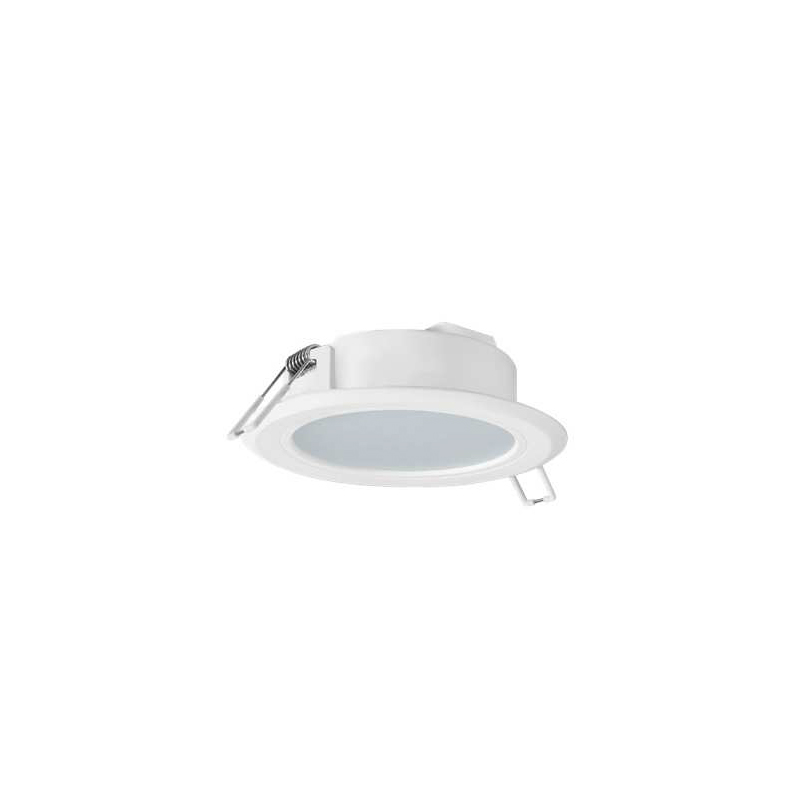

PHILIPS Downlight Modules Certaflux DLM Slim
Downlight Modules
Certaflux DLM Slim module provides a very easy to use solution for downlight application with affordable cost but no sacrifice on light qulity. The module is integratd with optical and heatsink which help to make the produc extremely easy to use. Optimized diffuser gives uniform light.Whole portfolio is fully compatilbe with Philips Drivers and with high flexibility in lm/w and $/W. 6500K is added in the family.
- β‘ Low flicker, max 4% current ripple
- β‘ Better glare performance than COB
- β‘ CRI>90 with stable color
Specifications
- Model
- Certaflux DLM Slim
KEY FEATURES
Provides 600lm/1000lm/2000lm lum package
Optimized diffuser provides good uniformity
Up to 130lm/W @ module level
CRI >80 and good colour stability over lifetime
Fully compatible with Philips Certa Drivers
Color temperatures: 3000K, 4000K, 5000K,6500K
APPLICATIONS
Offices
Public buildings
Hospitality
Retail
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- CertaFlux DLM Slim 600lm 830 4" G2 929003389780
- CertaFlux DLM Slim 600lm 840 4" G2 929003389880
- CertaFlux DLM Slim 600lm 850 4" G2 929003389980
- CertaFlux DLM Slim 600lm 865 4" G2 929003390080
- CertaFlux DLM Slim 1000lm 830 4" G2 929003390180
- CertaFlux DLM Slim 1000lm 840 4" G2 929003390280
- CertaFlux DLM Slim 1000lm 850 4" G2 929003390380
- CertaFlux DLM Slim 1000lm 865 4" G2 929003390480
- CertaFlux DLM Slim 1000lm 830 6" G2 929003390580
- CertaFlux DLM Slim 1000lm 840 6" G2 929003390680
- CertaFlux DLM Slim 1000lm 850 6" G2 929003390780
- CertaFlux DLM Slim 1000lm 865 6" G2 929003390880
- CertaFlux DLM Slim 2000lm 830 6" G2 929003390980
Product specifications
Click to enlarge
FAQ
Q1: What are the core features of Fortimo DLM R111?
A1: It features max 4% low flicker, integrated heatsink, backward compatibility and better glare control compared with COB lighting solutions.
Q2: What lumen levels and color rendering does this module offer?
A2: Available in 2000lm, 3000lm and 4000lm, CRIοΌ90 with excellent long-term color stability.
Q3: What are the typical applications for Fortimo DLM R111?
A3: It is designed for offices, public buildings, hospitality and retail high-performance downlight luminaires.
