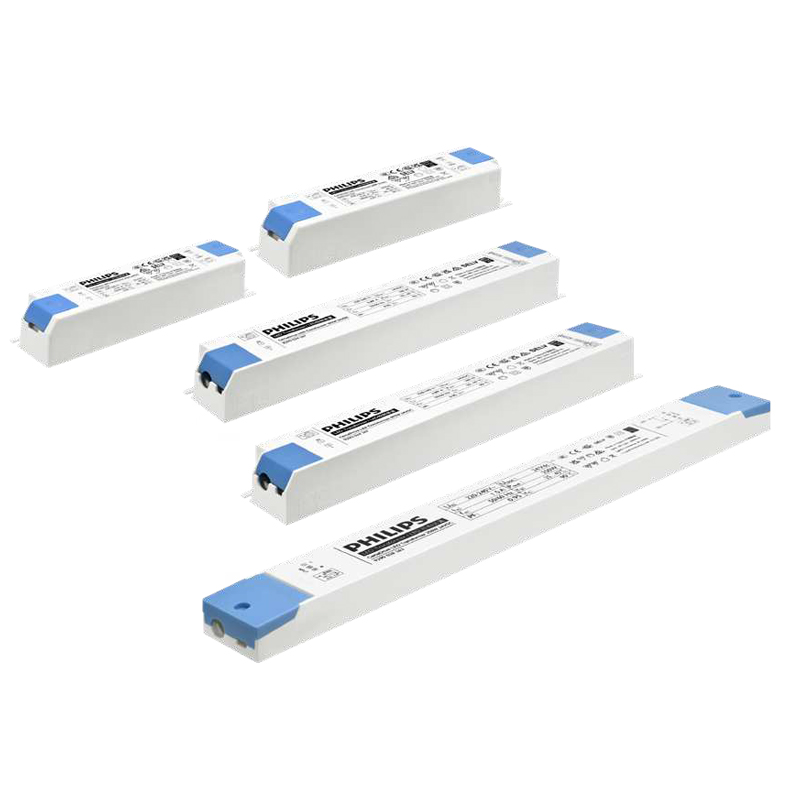

PHILIPS CertaDrive LED Transformer G2
CertaDrive LED Transformer G2
Philips CertaDrive LED Transformers are designed to drive non-dimmable 24VDC LED strips, which are specifically designed to ensure the highest performance with maximum robustness combined with 30,000 hours lifetime.
- ⚡ Multi‑protection for safe stable operation
- ⚡ 30,000‑hour reliable service lifetime
- ⚡ Premium EMI performance for easy design‑in
Specifications
- Model
- CertaDrive LED Transformer G2
- Application Scenarios
- Indoor
KEY FEATURES
Class II application
Built in and independent
Open Load/Short-circuit/Overpower Protection
10% output power at minimal operation range
30,000 hours lifetime
Provides options for different luminaire designs
Great EMI performance for easy design-in
Guaranteed reliable operations
Wide output range enables flexibility
Peace of mind with proven reliability
APPLICATIONS
Linear accent lighting
Façade accent lighting
Shelf/Cove lighting
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- CertaDrive LED Transformer 30W 24VDC,929003426480
- CertaDrive LED Transformer 60W 24VDC,929003426580
- CertaDrive LED Transformer 120W 24VDC,929003426680
- CertaDrive LED Transformer 180W 24VDC,929003426780
- CertaDrive LED Transformer 250W 24VDC,929002826380

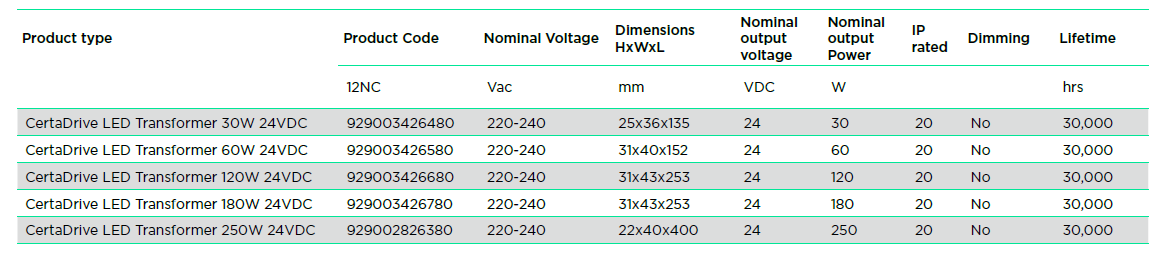

Product specifications
Click to enlarge
FAQ
Q1: Does CertaDrive G2 support dimming function?
A1: No, it is made for non‑dimmable 24VDC LED strips.
Q2: What protection features does this transformer have?
A2: Open‑load, short‑circuit and overpower protection.
Q3: What lighting projects can this driver apply to?
A3: Linear, façade accent and shelf/cove lighting.
