Class II+III 2‑wire parallel SPD Type 2+3, specially designed for luminaires with no earth connection.
BP-SPD20KV-3/P/II|Outdoor Street Light Surge Arrester SPD

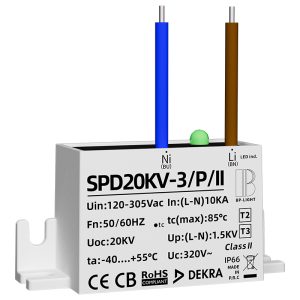

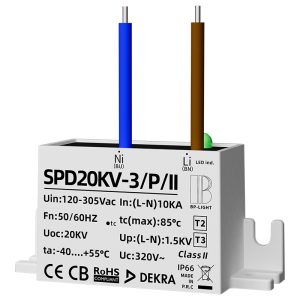

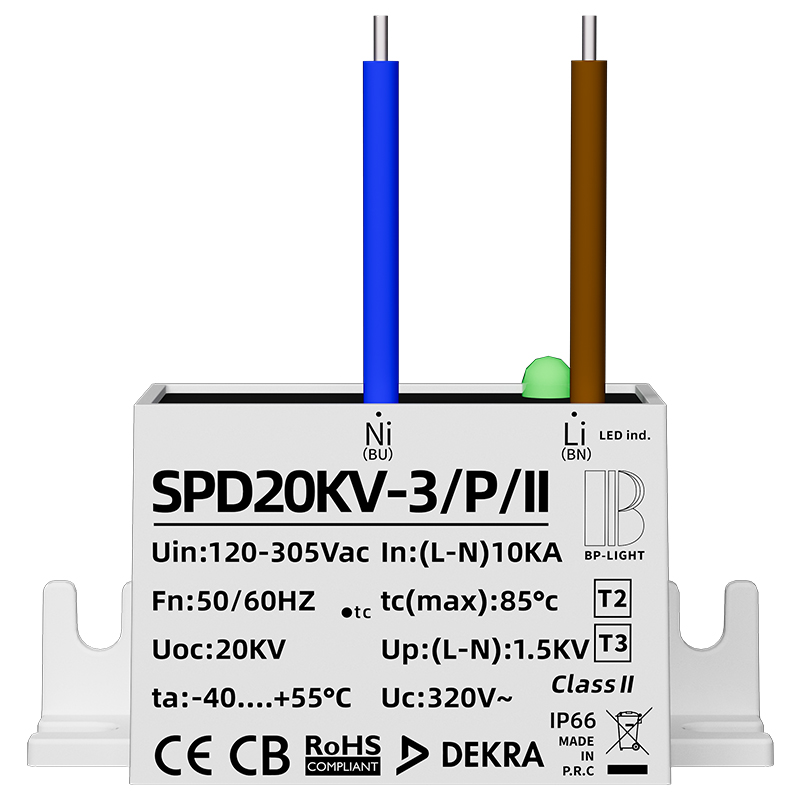

The Type 2+3 12kV 2‑wire Class II LED surge protector is custom‑designed for Class II luminaires. It has obtained CE and CB certifications and satisfies ENEC specifications, making it a critical protective component for a wide range of outdoor lighting fixtures.
- ⚡ Type 2 & Type 3 12kV parallel surge protector
- ⚡ 10kA IP67 LED surge protector
- ⚡ with thermal trip protection and indicator light
Specifications
- Model
- BP-SPD10KV-3/P/II
- Applicable luminaires
- Class Il luminaire
- Certifications
- CB, CE, RoHS
- Connection
- Parallel
- Max input voltage (Un)
- 220-240V
- IP Rating
- IP67
- Max Discharge Current
- 20KA
- Nominal Discharge Current
- 10KA
- SPD Category
- SPD
KEY FEATURES
Maximum continuous operating voltage (AC) Uc (L-N) V]：320
Nominal voltage AC 50-60 Hz - Un V]：230/400
Nominal voltage AC 50-60 Hz - Un (L-N) V]：230
Nominal discharge current (8/20)- In (L-N) [kA]：10
Max Discharge Current (8/20) - Imax (L-N) [kA]：20
Rated current load - IL [A]：10
Voltage protection level at In - Up (L-N)[kV]：1.5
Open circuit Voltage(L-N)[kV]：20
Short-circuit Current rating-Isccr [A]:300
Response time tA (L-N) [ns]：≤25/≤100
TOV Ut 5s (LV systems, withstand) V]：337
TOV Ut 120min (HV systems, withstand) V]:442
Dynamic thermal disconnection：Yes
APPLICATIONS
Outdoor Road Lighting
Tunnel & Underground Traffic Lighting
Landscape Lighting & Outdoor Signage
Outdoor Lighting for Industrial Plants
Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
| Title | Class II+III 2‑wire parallel SPD Type 2+3, specially designed for luminaires with no earth connection. |
|---|---|
| Temperature range [ºC] | -40 ...85 |
| Indication System Type | LED |
| Insulating material | PC |
| Housing color | RAL 9003 |
| Enclosure - IP | IP67 |
| Flammability class | UL94V-0 |
|---|---|
| Terminal connection | Pushin(in and out) |
| Wire Connections | Cable (in and out) 18# |
| Product Weight[g] | 67 |
| Packaging Dimensions (LXW X H) [Mm] | 68*23*33.7 |
FAQ
What is the maximum continuous operating voltage (Uc) of the 2‑wire parallel 12kV LED surge protector?
The maximum continuous operating voltage (Uc) is 320V AC.
How many times can this LED surge protection device withstand 12kV surges continuously?
Under the standard 8/20μs waveform, it can withstand multiple 6kA surges until aging failure. Typically, it can withstand more than 10 to 20 effective 12kV surges.
What material is used for the housing of this LED surge protector?
The housing is made of flame‑retardant and high‑temperature resistant PC/ABS engineering plastic, which is waterproof and aging‑resistant.
Is this LED surge protector compatible with 10kV surges?
Yes, it is fully compatible. 10kV is lower than 20kV, so it provides reliable protection.
Does this surge protector have product certifications?
It has CE and CB certifications, complying with ENEC, IEC 61643‑11 and EN 61643‑11 standards.
Is the surge level inadequate (10kV vs 20kV)?）
10kV is enough for urban areas.20kV is required for coastal, mountainous, rural areas with high lightning risk.
RELATED PRODUCTS

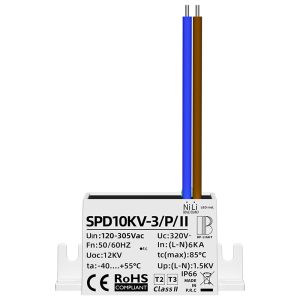

Type 2 & Type 3 2‑wire parallel Class II surge protector, designed for luminaires without an earth wire.
