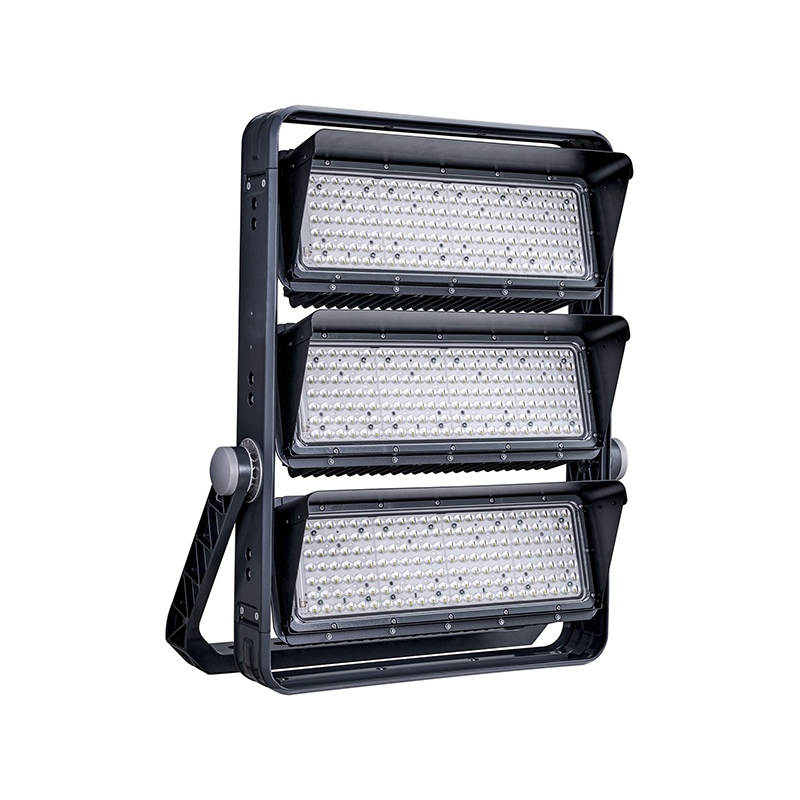

ActiStar Large BVP581/582/583Signify ActiStar Large Versatile floodlight to illuminate your areas
SportsStar BVP581/582/583
ActiStar Large BVP581/BVP582/BVP583 is a high-power LED floodlight for sports & entertainment lighting. It delivers outstanding luminous efficiency, uniform light quality and long service life. Built with DALI driver box and D4i interface for wireless control. Advanced beam control cuts spill light pollution and reduces wind load on stadium poles. IP66 & IK08 rated, with up to 1800W power and 249Klm output, it ensures safety and visual comfort for venues from simple fields to elite competition centers.
- ⚡ Up to 150lm/W & 249Klm output
- ⚡ DALI 2 & D4i wireless control ready
- ⚡ IP66 IK08, 100,000h lifespan
Specifications
- Application Scenarios
- Outdoor
- LED Light Types
- Flood light
KEY FEATURES
Equipped with dedicated glare shield to minimize spill light and boost visual comfort. Professional sports lens with multiple optimized beam patterns reduces light pollution.
Unique adjustable modular design lowers wind load coefficient of poles, cuts upward light emission and mitigates the wind impact on stadium structures.
Optimized cooling fins raise heat dissipation efficiency by 30%, ensuring stable and reliable light performance throughout long-term continuous operation.
Color-coded gear cover allows installers to quickly identify optical types on site. 16 asymmetric optics support long-throw lighting and reduce total fixture quantity.
Optional PC or tempered glass cover resists UV aging and lens haze. Supports DMX/RDM, DALI2/D4i, with CB/CE/SAA/CQC certifications.
APPLICATIONS
Professional outdoor sports field lighting
Indoor professional gymnasium lighting
Olympic-grade competition center projects
TECHNICAL SPECIFICATIONS
Product Information：:
- BVP581P LED822/757 600W A35VWB R5BV,911401606312
- BVP581P LED822/757 600W A35WB R5BV,911401606412
- BVP581P LED832/757 600W A35MB R5BV,911401606512
- BVP581P LED832/757 600W A35NB R5BV,911401606612
- BVP581P LED768/757 600W A35VWB V1R5BV,911401607512
- BVP581P LED777/757 600W A35MB V1R5BV,911401607612
- BVP581P LED777/757 600W A35NB V1R5BV,911401607712
- BVP581P LED777/757 600W A35WB V1R5BV,911401607812
- BVP582P LED1392/757 1200W A65VWB R35BV,911401608712
- BVP582P LED1482/757 1200W A65MB R35BV,911401608812
- BVP582P LED1482/757 1200W A65WB R35BV,911401608912
- BVP582P LED1500/757 1200W A65NB R35BV,911401609012
- BVP582P LED1591/757 1200W A45VWB R15BV,911401609112
- BVP582P LED1591/757 1200W A55VWB R25BV,911401609212
- BVP582P LED1609/757 1200W A45MB R15BV,911401609312
- BVP582P LED1609/757 1200W A45WB R15BV,911401609412
- BVP582P LED1609/757 1200W A55MB R25BV,911401609512
- BVP582P LED1609/757 1200W A55WB R25BV,911401609612
- BVP582PLED1627/757 1200W A45NB R15BV,911401609712
- BVP582PLED1627/757 1200W A55NB R25BV,911401609812
- BVP582PLED1645/757 1200W A35VWB R5BV,911401609912
- Only partial models shown, please contact us for full options.
Junction Box Module Display
Click to enlarge
DOWNLOADS
FAQ
Q1: What are the available power tiers and maximum luminous flux?
A1: 600W /1200W /1800W options; maximum luminous flux reaches 198Klumen.
Q2: What is the protection rating and operating temperature range?
A2: IP66, IK08; operating temperature: -40℃ ~ +50℃ for outdoor use.
Q3: What intelligent control protocols are supported?
A3: It supports DMX/RDM, DALI 2 and D4i smart lighting control systems.
