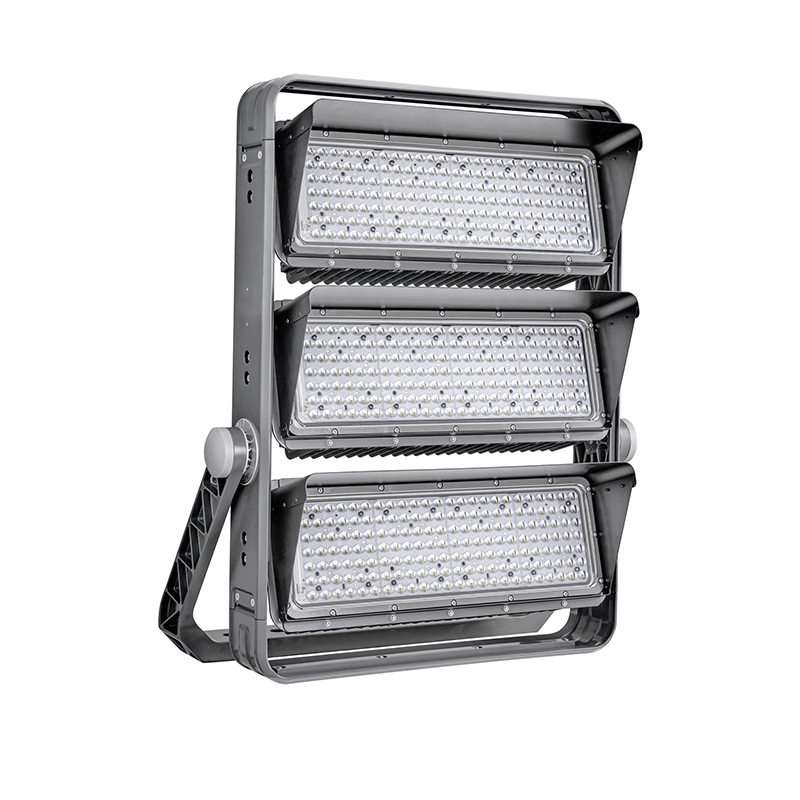

PHILIPS BVP571/572/573 Signify ActiStar Large Versatile floodlight to illuminate your areas
SportsStar BVP631/BVP632 & EVP632

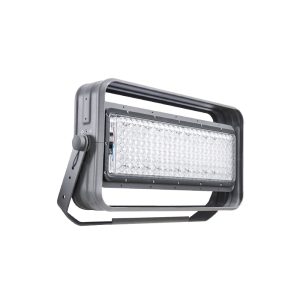

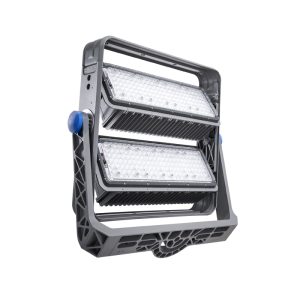

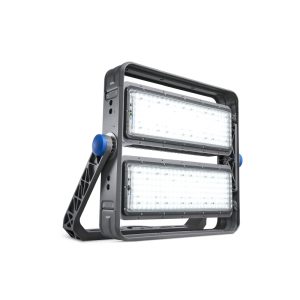

ArenaX BVP571/BVP572/BVP573 is a high-power LED floodlight engineered for premium sports venues. It delivers ultra-high lumen output with advanced spill light control. Its lightweight yet sturdy frame resists strong winds and speeds up installation. The rotatable bracket locks angles quickly. Featuring a 100,000-hour lifespan and smart thermal system, it maintains stable performance up to +50℃. IP66 & IK08 rated, it offers multiple symmetric/asymmetric optics and intelligent control options for professional stadium lighting with minimal light pollution.
- ⚡ 100,000h lifespan & IP66 IK08
- ⚡ Professional anti-spill sports optics
- ⚡ Up to 1800W & 198Klm output
Specifications
- Application Scenarios
- Outdoor
- LED Light Types
- Flood light
KEY FEATURES
Equipped with dedicated glare shield for spill light minimization and superior visual comfort. Professional sports lens with multiple optimized beam patterns cuts light pollution.
Unique adjustable modular design reduces pole wind load coefficient and wind force, suppressing upward light emission to protect night skies.

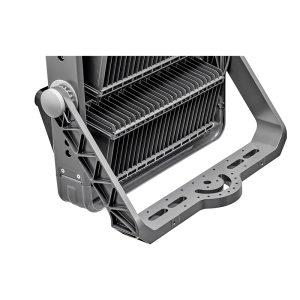

Specially engineered cooling fins improve heat dissipation efficiency by 30%, securing consistent and reliable light performance over long-term operation.
Color-coded gear disc enables fast on-site optical type identification. Symmetric & asymmetric optics deliver long-throw lighting and reduce total fixture quantity.
Optional PC or tempered glass cover prevents UV-induced lens yellowing. Supports DMX/RDM, DALI2/D4i, with CB/CE/SAA/CQC certifications.
APPLICATIONS
Professional outdoor sports field lighting
Indoor professional gymnasium lighting
Olympic-grade competition center projects
TECHNICAL SPECIFICATIONS
Product Information：:
- BVP571P LED663/957 600W S2 R0BV 911401605512
- BVP571P LED663/957 600W S3 R0BV 911401605612
- BVP571P LED663/957 600W S4 R0BV 911401605712
- BVP571P LED663/957 600W S5 R0BV 911401605812
- BVP571P LED663/957 600W S6 R0BV 911401605912
- BVP571P LED663/957 600W S7 R0BV 911401606012
- BVP571P LED663/957 600W S8 R0BV 911401606112
- BVP571P LED663/957 600W S9 R0BV 911401606212
- BVP571P LED499/957 600W S8 V0R0BV 911401606712
- BVP571P LED499/957 600W S9 V0R0BV 911401606812
- BVP571P LED502/957 600W S7 V0R0BV 911401606912
- BVP571P LED528/957 600W S6 V0R0BV 911401607012
- BVP571P LED538/957 600W S5 V0R0BV 911401607112
- BVP571P LED547/957 600W S4 V0R0BV 911401607212
- BVP571P LED552/957 600W S3 V0R0BV 911401607312
- Only partial models shown, please contact us for full options.
Junction Box Module Display
Click to enlarge
DOWNLOADS
FAQ
Q1: What are the available power tiers and maximum luminous flux?
A1: 600W /1200W /1800W options; maximum luminous flux reaches 198Klumen.
Q2: What is the protection rating and operating temperature range?
A2: IP66, IK08; operating temperature: -40℃ ~ +50℃ for outdoor use.
Q3: What intelligent control protocols are supported?
A3: It supports DMX/RDM, DALI 2 and D4i smart lighting control systems.
