20kV IP67 Waterproof LED Surge Arrester SPD for All Kinds of Outdoor LED Luminaires

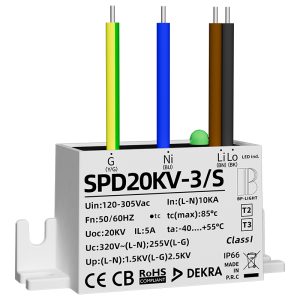

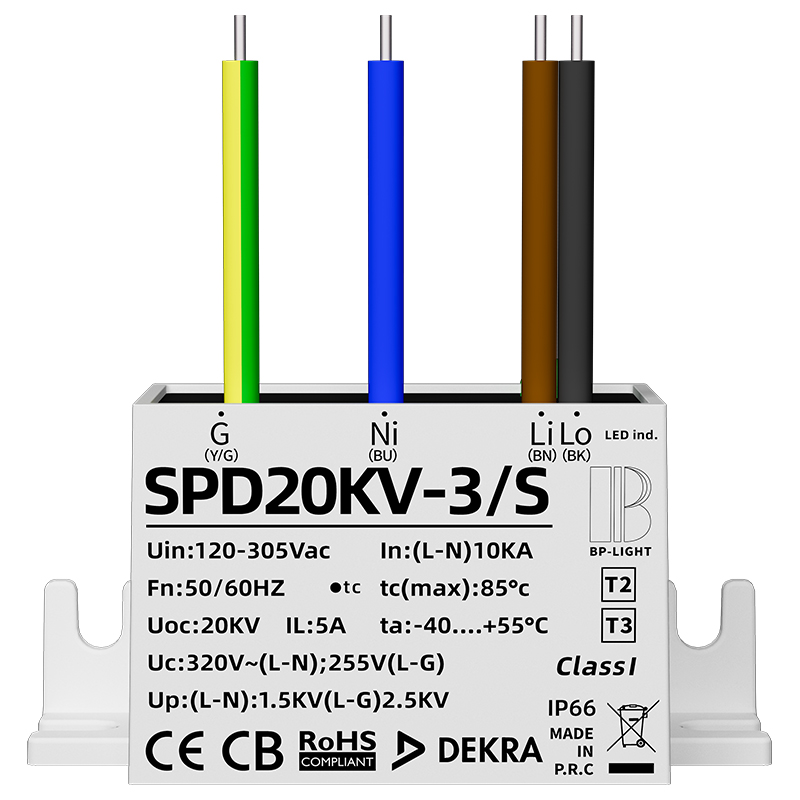

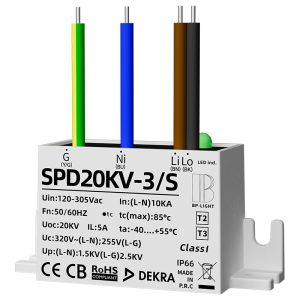

BP-SPD20KV-3/S|Outdoor Street Light Surge Arrester SPD
Manufactured in full compliance with international standards IEC 61643‑11 and EN 61643‑11, this Type 2+3 lightning surge protector is designed for Class I outdoor luminaires, such as urban road lamps, highway street lights and landscape lighting fixtures. The integrated dual‑stage surge suppression technology efficiently absorbs lightning surges and transient overvoltage, thoroughly protecting LED drivers and lighting modules from surge‑induced damage in open‑air outdoor road lighting systems.
- ⚡ Max Discharge Current:20KA
- ⚡ Dynamic thermal disconnection：Yes
- ⚡ Maximum continuous operating voltage:320V
Specifications
- Model
- BP-SPD20KV-3/S
- Applicable luminaires
- Class l luminaire
- Certifications
- CB, CE, RoHS
- Connection
- Series
- Max input voltage (Un)
- 220-240V
- IP Rating
- IP67
- Max Discharge Current
- 20KA
- Nominal Discharge Current
- 10KA
- SPD Category
- SPD
KEY FEATURES
Maximum continuous operating voltage (AC) Uc (L-N) V]：320
Nominal voltage AC 50-60 Hz - Un V]：230/400
Nominal voltage AC 50-60 Hz - Un (L-N) V]：230
Nominal discharge current (8/20)- In (L-N) [kA]：10
Max Discharge Current (8/20) - Imax (L-N) [kA]：20
Rated current load - IL [A]：10
Voltage protection level at In - Up (L-N)[kV]：1.5
Open circuit Voltage(L-N)[kV]：20
Short-circuit Current rating-Isccr [A]:300
Response time tA (L-N) [ns]：≤25/≤100
TOV Ut 5s (LV systems, withstand) V]：337
TOV Ut 120min (HV systems, withstand) V]:442
Dynamic thermal disconnection：Yes
APPLICATIONS
Outdoor Road Lighting
Tunnel & Underground Traffic Lighting
Landscape Lighting & Outdoor Signage
Outdoor Lighting for Industrial Plants
Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
| Title | 20kV IP67 Waterproof LED Surge Arrester SPD for All Kinds of Outdoor LED Luminaires |
|---|---|
| Temperature range [ºC] | -40 ...85 |
| Indication System Type | LED |
| Insulating material | PC |
| Housing color | RAL 9003 |
| Enclosure - IP | IP67 |
| Flammability class | UL94V-0 |
|---|---|
| Terminal connection | Pushin(in and out) |
| Wire Connections | Cable (in and out) 18# |
| Product Weight[g] | 67 |
| Packaging Dimensions (LXW X H) [Mm] | 68*23*33.7 |
FAQ
Can the cable length of this SPD for outdoor lighting be customized?
Yes. We can customize the cable length according to your requirements, with a MOQ of 1000 pieces.
How do I choose between 10kV/10kA and 20kV/20kA protection levels?
10kV/10kA: Ideal for standard urban street lighting or areas with stable grids and low lightning frequency. It offers the best cost-to-performance ratio.20kV/20kA:Recommended for high-risk areas like highways, coastal regions, remote rural areas, or high-mast stadium lighting. Higher kA ratings mean the device can withstand more frequent and powerful surges, ensuring a longer lifespan for the entire luminaire.
"What is the difference between Series and Parallel installation? Which is better?
We offer both versions to suit your project requirements: Parallel: Easier to install. If the SPD fails, the light stays on but is no longer protected. Series: This is the preferred choice for most professional projects. When the SPD reaches its end-of-life, it automatically disconnects power to the fixture. This ""failsafe"" mode alerts maintenance teams to replace the SPD, ensuring the expensive LED luminaire is never left unprotected."
Is this device fully waterproof for extreme outdoor use?
Yes. Our SPDs are designed for harsh environments with an IP67 rating. They are housed in flame-retardant casings and fully encapsulated with high-grade epoxy resin. This ensures reliable operation against heavy rain, high humidity, and temperature fluctuations from -40°C to +85°C.
Does poor earthing render the SPD useless?
High earth resistance or loose PE connection prevents surge current from discharging.
