The Modular Solution by Excellence, Street Light Pole Junction Box with DIN Rail Modular Protection
Street Light Pole Protection Junction Box
Designed to simplify field wiring work, the street light pole junction box is Attractive, Functional, Durable and Affordable. Fixed inside the street light pole, this junction box reserves universal mounting positions for SPD, OVP and UVP protectors, making component maintenance and replacement much easier for lighting contractors.
- ⚡ High Modularity
- ⚡ Strong Compatibility
- ⚡ Simplified Installation
- ⚡ High Safety
Specifications
- Model
- BP-GYJ8000-Circuit breaker(1P)
- Included Modules
- Circuit breaker(1P)
KEY FEATURES
Product Advantages—Attractive, Functional, Durable, Affordable
High Modularity — Configurable on demand, flexible expansion and future upgrade support.
Strong Compatibility — Fully compatible with mainstream standard DIN rail devices without brand restriction.
Simplified Installation — Sliding quick-mount design greatly reduces construction and operation & maintenance costs.
High Safety — High-strength enclosure with IK08 impact resistance to ensure electrical safety.
APPLICATIONS
Smart street lights on urban main roads: integrated time control, SPD and remote communication to realize energy saving and intelligent management.
Landscape lighting for parks and scenic spots: modular configuration enables flexible zoning lighting control strategies.
Highway and railway tunnel lighting: high protection grade adapts to humid, vibrating and dusty environments.
Integrated PV & energy storage street lights: built-in DC power supply and protection modules to support off-grid operation.
TECHNICAL SPECIFICATIONS
Maximum Capacity:
- The input cable port can connect 2 pieces of
- 25mm² three-phase cables.
- Street lamp connection port is compatible with cables of 2.5mm² and below.
- For input cable ports, each terminal blockmax. supports 3 holes X 2 cables X 5 coresper cable x 25mm² per core.
- The input cable port can be equipped with 2 Cat5e Ethernet cables.
Optional Accessories:
- Terminal block: for terminal markingand convenient maintenance.
- Wogo 3*16mm2 Port
Compliance Standards:
- EN 61439-2
- Compliant with IEC 60529
- IK08 Compliant with EN62262 Standard
- Class 2
- -40°C~+105°C
Installation:
- Mounting lugs with 1 or 2 hooks.
- Fixed installation with M6 screws is available.
Standard Color:
- Contact us for customized colors.
Delivery:
- Pre-wired with high-temperature silicone-coated wires and crimped lugs.
- Supplied with Circuit breaker(1P) and cable clamp.
Click to enlarge

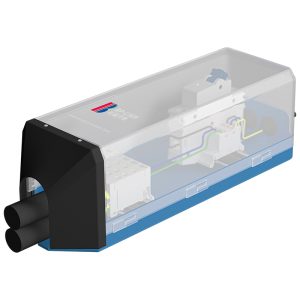

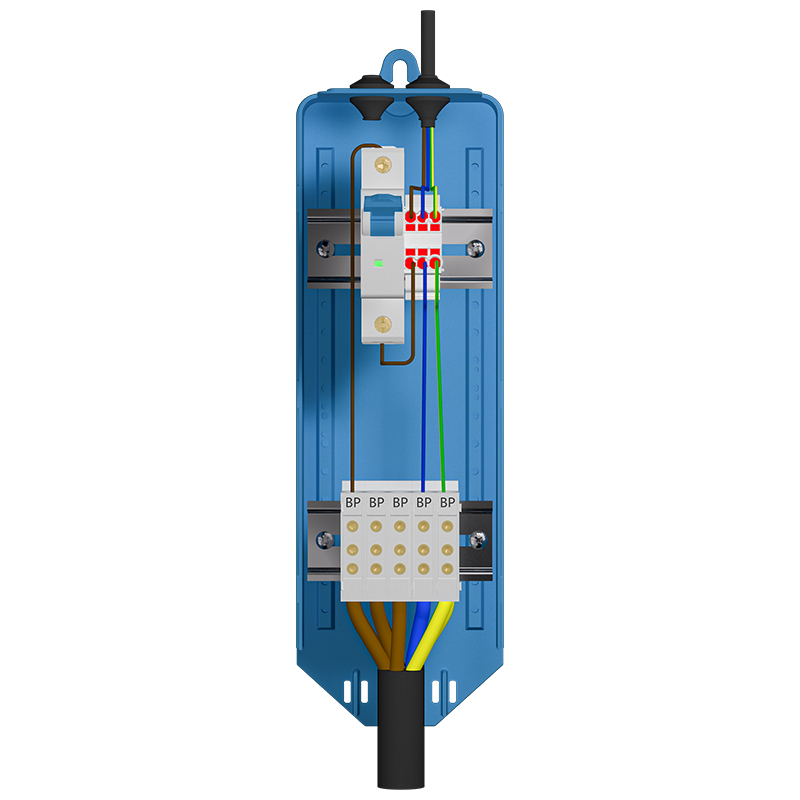

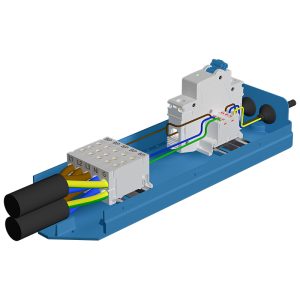

Junction Box Module Display
Click to enlarge
DOWNLOADS
FAQ
Is the SPD replaceable separately instead of replacing the whole junction box?
Only this part needs to be replaced
What is a light pole junction box used for?
The light pole junction box, also called street pole protection junction box, is installed inside light poles for outdoor smart lighting systems. It provides integrated power distribution, overvoltage/undervoltage protection, lightning surge protection (SPD), circuit break control and intelligent communication wiring. It fits urban road lamps, park landscape lighting, tunnel lights and solar PV light poles, centralizing all electrical components inside the pole to simplify wiring and boost outdoor electrical safety.
Is this modular light pole junction box compatible with all DIN rail electrical components?
Yes. Our BP-GYJ8000 light pole junction box adopts standard 35mm adjustable DIN rails with full universal compatibility. It supports mainstream brand DIN rail modules including MCB circuit breakers, RCD residual current devices, time switches, SPD surge protectors, OVP/UVP voltage protectors and LoRa/NB-IoT intelligent control modules. There are no brand restrictions, and users can freely combine modules to customize configurations per project requirements.
What waterproof and impact resistance rating does the light pole junction box have for outdoor use?
This street light pole junction box carries IP54 dustproof & waterproof rating and IK08 impact resistance certification, conforming to EN 61439-2, IEC 60529 and Class 2 safety standards. The high-strength enclosure adapts to harsh outdoor environments like rainy, dusty, vibrating highway and railway tunnel sites. It works stably under a wide temperature range of -40°C ~ +105°C, offering long-term reliable protection for electrical assemblies inside light poles.
RELATED PRODUCTS
The Flexible Junction Box for Simplified Connection | Light Pole Street Light Application
Street Light Pole Protection Junction Box
⚡|High Modularity
View Details →

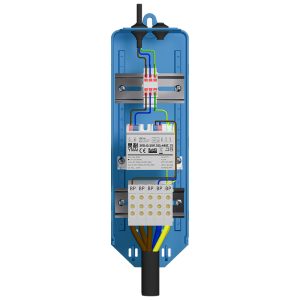

Universal Lamp Post Junction Box with Unrivalled Capacity for Outdoor Smart City Street Lighting Projects
