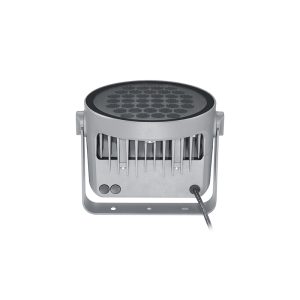

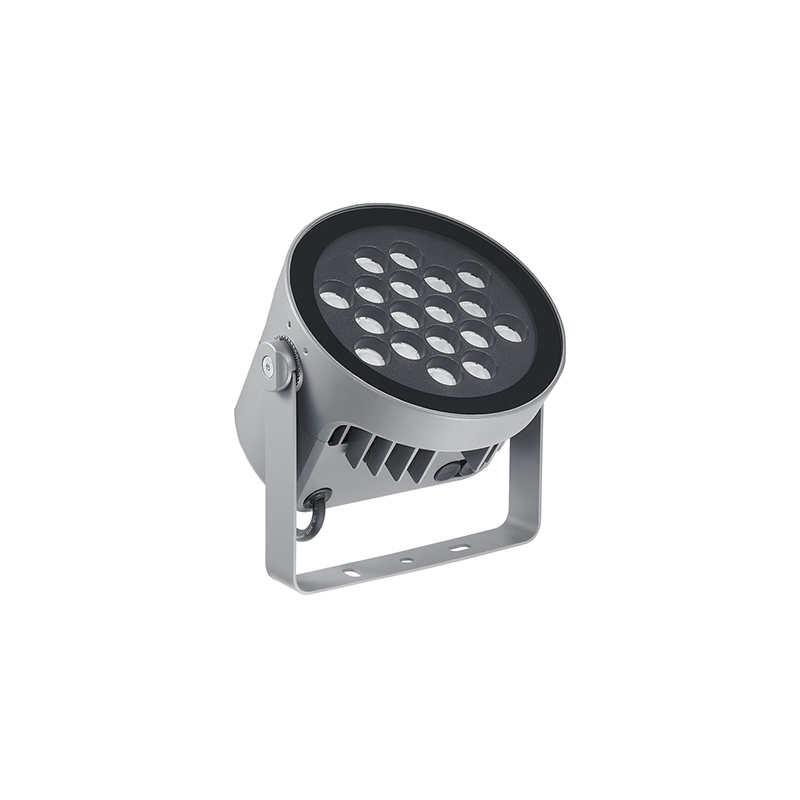

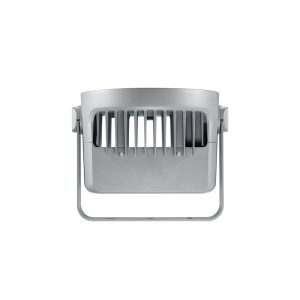

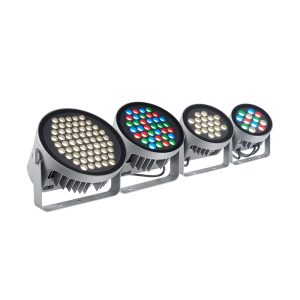

Philips UniFlood C Pro Architectural LED floodlight for fixed or dynamic lighting
BVP371/372/373/374
Philips UniFlood C Pro BVP371/BVP372/BVP373/BVP374 is a circular outdoor LED floodlight for facade, landscape and architectural accent lighting. It offers multiple CCT, colour options and six beam angles down to 3.5°, supporting On-off and DMX512 control. Die-cast aluminium housing with tempered glass, IP66 & IK06 rating. Max 12,900lm output, 50,000h lifespan. Self-drain design, anti-UV PMMA lens, ideal for buildings, bridges and heritage sites.
- ⚡ Versatile beam angles down to 3.5°
- ⚡ DMX512 dynamic colour control
- ⚡ IP66 rugged outdoor construction
Specifications
- Application Scenarios
- Outdoor
- LED Light Types
- Flood light
KEY FEATURES

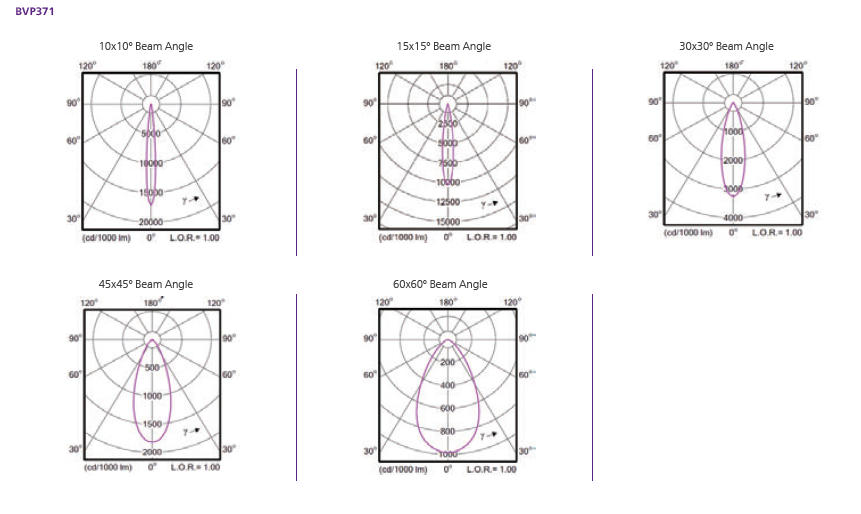

Six beam choices from 3.5° to 60°, plus optional hood & honeycomb louver to suppress glare and deliver precise targeted lighting for architectural facades.
Rich colour portfolio: white CCTs, single colours, RGB/RGBW/TW, with On-off and DMX512 control to realize creative dynamic lighting schemes.
Anti-UV high-performance PMMA lens, up to 12,900lm luminous flux; 50,000h lifetime L70 for white and L50 for colour variants.
Robust die-cast aluminium housing and tempered glass, IP66 IK06. Self-draining front surface prevents water & dust accumulation for uplight applications.
Wide operating temperature range -40℃~50℃. Daisy-chain signal wiring with IP67 connectors and dedicated address line simplifies DMX programming.
APPLICATIONS
Building facade flood illumination projects
Landscape & landmark decorative lighting
Bridge and heritage accent lighting
TECHNICAL SPECIFICATIONS
Product Information：:
- BVP372 18LED 40K 220V 15 50W HP 911401774733
- BVP372 18LED 40K 220V 15 DMX 50W HP 911401774743
- BVP372 18LED 40K 220V 30 50W HP 911401774753
- BVP372 18LED 40K 220V 30 DMX 50W HP 911401774763
- BVP372 18LED 40K 220V 45 50W HP 911401774773
- BVP372 18LED 40K 220V 45 DMX 50W HP 911401774783
- BVP372 18LED 40K 220V 60 50W HP 911401774793
- BVP372 18LED 40K 220V 60 DMX 50W HP 911401774803
- BVP372 18LED RGB 220V 10 DMX 50W HP 911401774813
- BVP372 18LED RGB 220V 15 DMX 50W HP 911401774823
- BVP372 18LED RGB 220V 30 DMX 50W HP 911401774833
- BVP372 18LED RGB 220V 45 DMX 50W HP 911401774843
- BVP372 18LED RGB 220V 60 DMX 50W HP 911401774853
- BVP372 20LED RGBNW 220V 10 DMX 50W HP 911401774863
- BVP372 20LED RGBNW 220V 15 DMX 50W HP 911401774873
- BVP372 20LED RGBNW 220V 30 DMX 50W HP 911401774883
- BVP372 20LED RGBNW 220V 45 DMX 50W HP 911401774893
- Only partial models shown, please contact us for full options.
Junction Box Module Display
Click to enlarge
DOWNLOADS
FAQ
Q1: What beam angles and colour options are available for UniFlood C Pro?
A1: Beam angles:3.5°,10°,15°,30°,45°,60°. White, single colour, RGB, RGBW and TW tunable white available.
Q2: What is the protection rating and service life of this luminaire?
A2: IP66 / IK06. 50,000h L70 for white light and 50,000h L50 for colour versions at 35℃.
Q3: What control modes and certifications does UniFlood C Pro support?
A3: On/Off or DMX512 control. Certified with CQC, CB and CE for global project use.
RELATED PRODUCTS

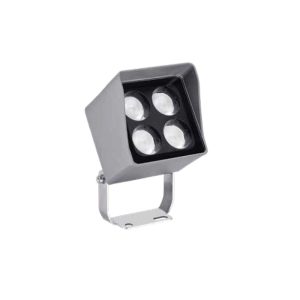

Philips UniFlood M G2 Compact BVP353 Micro/BVP353 C
BVP353 Micro/BVP353 C
⚡|Ultra-compact micro size design
View Details →

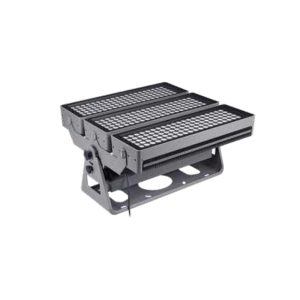

Philips UniFlood G G2 BVP344 is the best high-power LED floodlight for large architectural facade lighting.
BVP344 G2S/G2D/G2T
⚡|Modular design up to 900W high power
View Details →

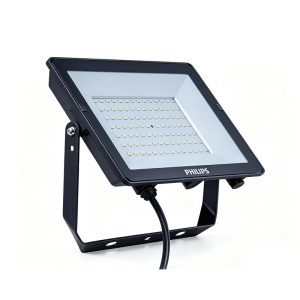

PHILIPS LED Flood light BVP150 LED10/WW PSU 10W SWB G3 CN 911401811186
