PHILIPS TrueForce CorePro LED HPI MV 12Klm 85W 865 E40 NB 929003162010
TrueForce CorePro LED HPI
Philips TrueForce Core LED I&R lamps offer an easy and short payback LED solution to replace High Intensity Discharge (HID) lamps. The products bring the energy efficiency and long lifetime benefits of LED to HID replacement and provide instant saving and low initial investment. With the right lamp size and light distribution, you can easily retrofit TrueForce Core LED I&R lamps and bypass the existing ballast while enhancing the lighting quality.
- β Ring lens for uniform bright light
- β 140lm/W high luminous efficiency
- β Up to 65% energy cost saving
- β Aluminum ring fast heat dissipation
- β Max 50000h ultra-long lifespan
Specifications
- Application Scenarios
- Indoor
- LED Light Types
- LED High Bay Light
KEY FEATURES
Integrated ring one-piece optical design expands luminous area and greatly improves light uniformity for bright soft illumination.
Industry-leading 140lm/W system light efficiency, reduces power use by 65% and easily replaces conventional high-power lamps.
Circular aluminum radiator accelerates heat dissipation, the light source can work stably inside closed lighting fixtures.
Multiple power specs:85W/105W/140W with E40 base, optional 4000K/6500K color temperature for different sites.
Two protection grades IP20/IP40, wide 110-277V input voltage, 25000-50000h service life for industrial long-time use.
APPLICATIONS
Industrial/retail - warehouses
factories
shops
transport hubs
TECHNICAL SPECIFICATIONS
Product Date Sheet:
- Model Name:PHILIPS TrueForce CorePro LED HPI MV 12Klm 85W 865 E40 NB 929003162010
- Wattage:85W
- Base:E40
- Lumen:12000lm
- CCT:6500K
- 12NC/Part Number:929003162010
PHILIPS Product 12NC List:
- PHILIPS TrueForce CorePro LED HPI MV 12Klm 85W 840 E40 NB 929003161810
- PHILIPS TrueForce CorePro LED HPI MV 12Klm 85W 865 E40 NB 929003162010
- PHILIPS TrueForce CorePro LED HPI MV 15Klm105W 840 E40 NB 929003161710
- PHILIPS TrueForce CorePro LED HPI MV 15Klm105W 865 E40 NB 929003162110
- PHILIPS TrueForce CorePro LED HPI MV 20Klm140W 840 E40 WB929002281710
- PHILIPS TrueForce CorePro LED HPI MV 20Klm140W 865 E40 NB 929002281810
- PHILIPS TrueForce CorePro LED HPI MV 20Klm140W 865 E40 WB929002281910
FAQ
Q1: What is the system luminous efficiency of this LED high bay bulb?
A1: It reaches a high system luminous efficiency of 140 lumens per watt for outstanding energy saving performance.
Q2: How much electricity can this LED light save compared to traditional light sources?
A2: It can save up to 65% of energy consumption to cut long-term operating costs for factories.
Q3: Can this high bay light source be installed in enclosed lamp housings?
A3: Yes, its ring aluminum heat sink enables stable operation within closed lighting fixture spaces.
Q4: What is the maximum rated service life of this LED high bay light?
A4: The 140W model has an ultra-long rated service life up to 50,000 hours with reliable durability.
Q5: What lamp base and voltage range do all models of this product adopt?
A5: All versions use E40 screw base, supporting wide universal voltage of 110V to 277V.
RELATED PRODUCTS
PHILIPS TrueForce CorePro LED HPI MV 15Klm 105W 840 E40 NB 929003161710
TrueForce CorePro LED HPI
β|Direct replacement for old HID lamps
View Details β
PHILIPS TrueForce CorePro LED HPI MV 20Klm 140W 865 E40 NB 929002281810
TrueForce CorePro LED HPI
β|Direct 400W HID replacement
View Details β

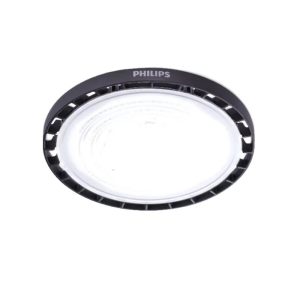

PHILIPS LED Highbay Light BY238P LED80/CW PSU GC G3911401563644
