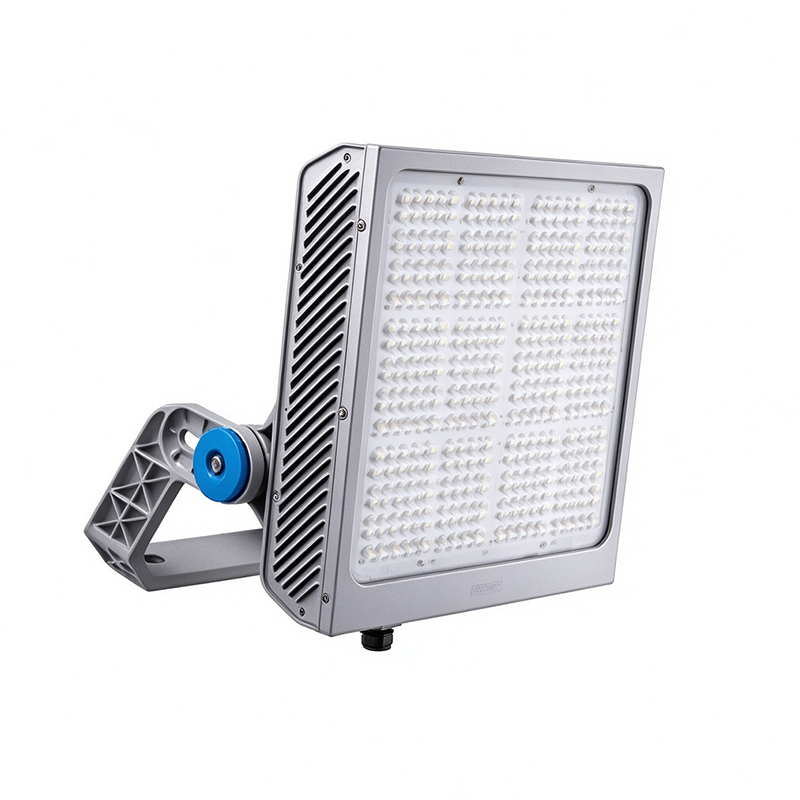

PHILIPS SportsStar G2 BVP680 High Power Floodlight
SportsStar G2 BVP680
Philips SportsStar Gen2 BVP680 is an innovative LED sports floodlight. It can directly replace traditional ArenaVision MVF403 2000W fixtures, delivering 162,000lm with CRI>90. Similar weight & size allows retrofit without structural changes. IP66 DMX driver connects to Interact Sports for remote lighting control and dynamic light shows.
- ⚡ Direct replacement for MVF403
- ⚡ High CRI for live broadcast
- ⚡ Interact Sports compatible
Specifications
- Application Scenarios
- Outdoor
- LED Light Types
- Flood light
KEY FEATURES
Outstanding optical performance with 162,000lm, CRI>90 and 100lm/W efficiency. Low flicker design meets strict HD broadcast requirements for top sports events.
Equipped with IP66 DMX driver, seamlessly linking to Interact Sports system. Supports programmable lighting, remote management and dynamic lighting performances.
Multiple professional sports lenses available. Optional anti-glare accessories reduce stray light and offer comfortable viewing experience for spectators.
Matches the dimension and weight of MVF403 2000W lamp. No modification to venue structure or load-bearing needed for simple retrofit projects.
IP66 & IK08 protection, integrated die-cast aluminum housing. 10KV surge protection, long 50,000h lifespan and CQC/CB/CE & RoHS certifications.
APPLICATIONS
Outdoor stadiums and race tracks
Indoor sports halls and natatoriums
Multi-purpose comprehensive sports venues
TECHNICAL SPECIFICATIONS
Product Information：:
- BVP680 LED1620/957 1620W 200-242V S2 911401642606
- BVP680 LED1620/957 1620W 200-242V S5 911401642706
- BVP680 LED1620/957 1620W 200-242V S7 911401642806
- BVP680 LED1620/957 1620W 230-400V S2 911401642906
- BVP680 LED1620/957 1620W 230-400V S5 911401643006
- BVP680 LED1620/957 1620W 230-400V S7 911401643106
Junction Box Module Display
Click to enlarge
FAQ
Q1: What is the total lumen output and CRI of BVP680?
A1: It delivers 162,000lm with CRI greater than 90, supporting high-definition live broadcast of top sports competitions.
Q2: Can BVP680 replace the old MVF403 directly?
A2: Yes. It shares similar weight and size, no structural reinforcement required for seamless retrofit.
Q3: What are the protection rating and lifespan of this floodlight?
A3: IP66 and IK08 rated, system lifetime reaches 50,000 hours under rated operating temperature.
RELATED PRODUCTS

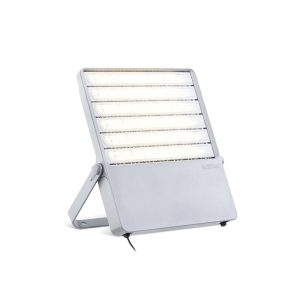

PHILIPS SportsStar ActiStar BVP631/BVP632 & EVP632
SportsStar BVP631/BVP632 & EVP632
⚡|High energy efficiency up to 135lm/W
View Details →
PHILIPS LED Linear Light Bright Star BVS211 LED104/840 80W 220-240V GC 911401902474 stadium lights Spot light
BVS211&221
⚡|Excellent anti‑glare performance
View Details →
PHILIPS ArenaVision G3.5 Plus BVP478/479 High Power Floodlight
Sports Floodlight BVP478/479
⚡|Meets sports live broadcast standards
View Details →

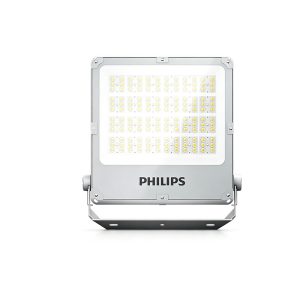

Philips Area Star, 30000 lm, 200 W, 830 warm white, Fixed Output, Safety class I
