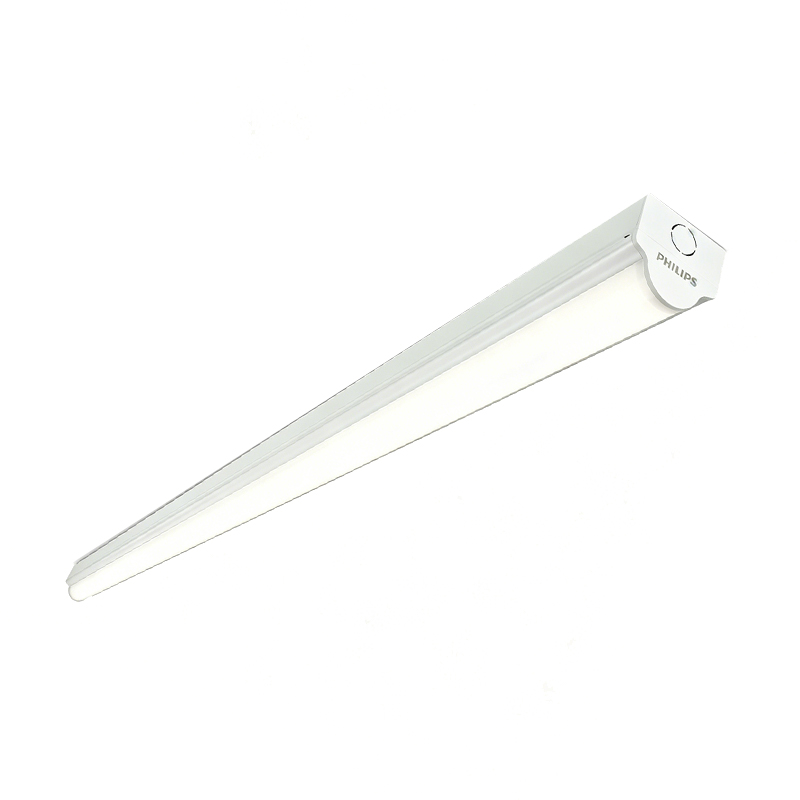

Philips Ledinaire batten BN045C
Linear Light BN045C
BN045C LED batten light adopts 0.4mm extra‑thick steel plate for rigid anti‑twist housing. It delivers high efficacy of 120lm/W with output up to 6000lm, IP40 front‑side protection and >0.95 power factor. Featuring uniform arc‑shaped light surface and seamless narrow end‑cap design, it reserves positions for emergency power accessories. Rated lifespan reaches 30000 hours, available in 1125mm and 1445mm for diverse commercial indoor lighting.
- ⚡ Robust extra‑thick steel anti‑twist housing
- ⚡ 120lm/W high efficacy & IP40 protection
- ⚡ Pre‑reserved emergency power compatibility
Specifications
- Application Scenarios
- Indoor
- LED Light Types
- Linear Light
KEY FEATURES
Constructed with 0.4 mm extra‑thick steel plate. The sturdy housing structure resists twisting and deformation, ensuring mechanical stability for long‑term installation in commercial projects.
Impresses with 120 lm/W high luminous efficacy, maximum 6000 lm brightness and >0.95 power factor. Front‑side IP40 rating effectively blocks insects from entering the fixture interior.
Adopts arc‑shaped light‑emitting surface to achieve even light output without grainy visual effect. Narrow end‑cap and seamless appearance support neat continuous installation.
Fully compatible with emergency power modules. Pre‑mounted positions are reserved for emergency power supply, indicator lamp and reset switch to meet emergency lighting requirements.

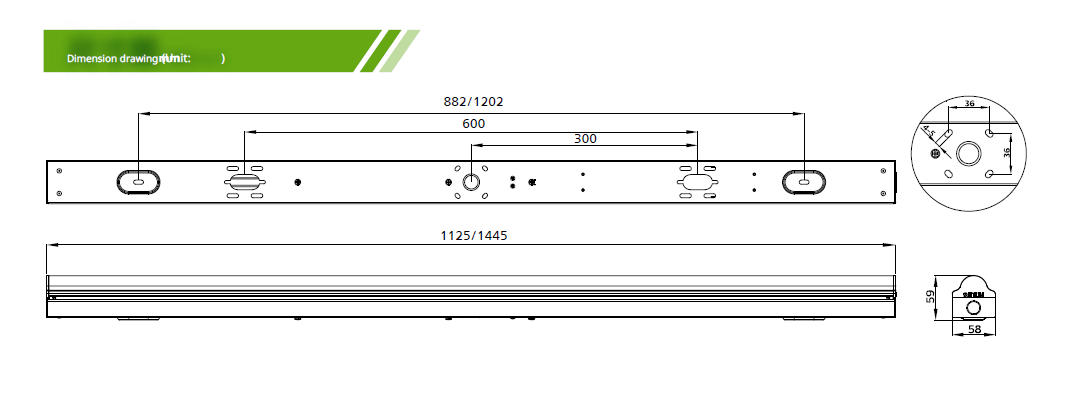

Two dimension options of 1125 mm and 1445 mm, CCT 4000K / 6500K available. Long 30000‑hour service life reduces maintenance workload for large‑scale lighting projects.
APPLICATIONS
Office and supermarket commercial lighting
Factory workshop and warehouse lighting
Corridor and public area emergency‑ready lighting
TECHNICAL SPECIFICATIONS
| Title | Philips Ledinaire batten BN045C |
|---|---|
| SPD Type | Type 2 |
| Max. Discharge Current (Imax) | 40kA (8/20µs) |
| Nominal Discharge Current (In) | 20kA (8/20µs) |
| Voltage Protection Level (Up) | ≤ 1.5kV |
| Nominal Voltage (Un) | 230/400V~ |
| Max. Operating Voltage (Uc) | 275V~ |
| Number of Poles | 3P (L-N) |
| Response Time (tA) | ≤ 25ns |
|---|---|
| Operating Temperature | -40°C ~ +85°C |
| Installation | 35mm DIN Rail |
| Enclosure Material | Thermoplastic UL94 V-0 |
| Protection Degree | IP20 |
| Standards | IEC 61643-11 / EN 61643-11 |
| Certificates | CE, UL, TÜV, RoHS, CB |
| Warranty | 5 Years |
Junction Box Module Display
Click to enlarge
FAQ
Q1: What is the housing material for BN045C LED batten?
A1: It is made of 0.4 mm extra‑thick steel plate for anti‑twist mechanical strength.
Q2: What is the luminous efficacy and IP rating of BN045C?
A2: It reaches 120 lm/W luminous efficacy with front‑side IP40 protection grade.
Q3: Can BN045C work with emergency power supply?
A3: Yes, reserved spaces support emergency power, indicator and reset switch fitting.
RELATED PRODUCTS

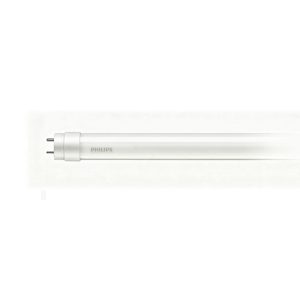

Philips LED Tube 600mm 1200mm 8W 16W T8
MAS LEDtube
⭐|240° wide‑angle even illumination
View Details →

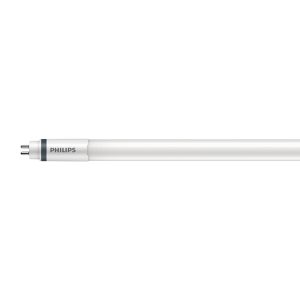

PHILIPS TLED T5 220-240V 8-14W 800lm 4000K G5 929002225810
MAS LEDtube
⭐|Single‑end power input design
View Details →

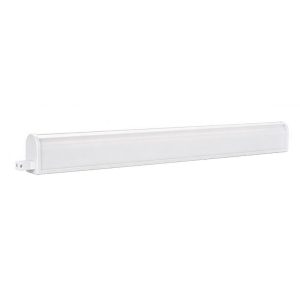

PHILIPS T5 Batten Light BN058C LED11/WW L1200 911401709132
Linear Light BN058C
⚡|Direct replacement for traditional T5 lamp
View Details →

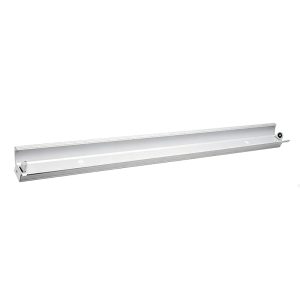

PHILIPS BN011C 1xTLED L600 G2 GC 911401737722
