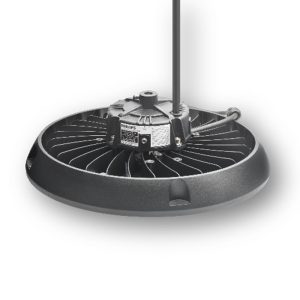

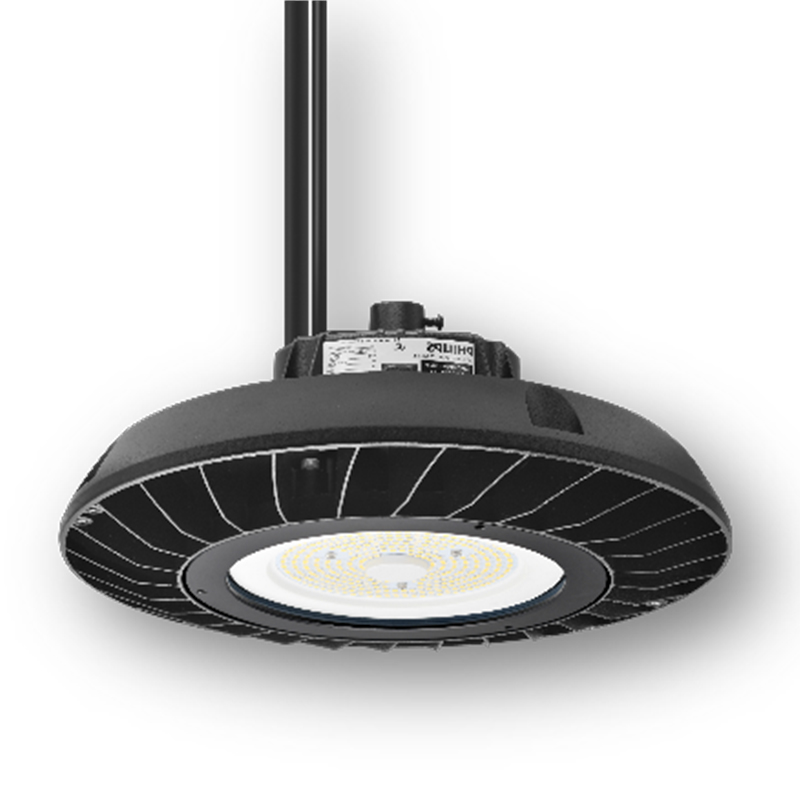

PHILIPS Highbay spectraled energy saver lights High Bay G2 System

High-bay Lights G2 System AO-012-120W

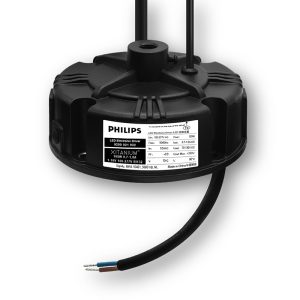

This Is an IP65-rated lighting solutlon speclally designed to dellver optimal performance forndustrlal llghting appllcatlons.reflector accessorles)80. The module supports beam distributions of 60', 90" and 115".dimnming function, and an optional auxillary power supply to feed sensors or controllers.sensors.It conslsts of two main components an Xtanilum circular highbay drver and a Fortimo or Fortmo HE Highbay G2 module with optonal Module: It del Mers luminous output of oK, 15K, 20K and 25k lumers wth module eficacy ranging from 14o ImW (Fortimo verskon)to 120 ImW (Fortmo HE versionl Three colour temperature options are avallable: 400oK, 570oK and 650oK All versions feature a CRl greater than Drver Designed wth an Input wotage of 100-277 VAc, enabllng relable operation wordwide It fatures adjustable output curent, 1- 1ov More than lghting: Systems equlpped with Fortimo HE modules also support smart solutons via SR IP67 drivers and EasyAlr SNH200

  • ⚡ High luminous efficacy performance
  • ⚡ IP65 dust‑water resistant grade
  • ⚡ Compatible intelligent lighting control

Specifications

Application Scenarios
Indoor
LED Light Types
LED High Bay Light
CERTIFIED TO
CE

KEY FEATURES

The lamp body material uses die casting aluminum, which has good driving heat dissipation.

Using well known domestic brand SMD patch light sources, it has high brightness, small light aggravation, and longlife.

(The domestic well-known drive has the characteristics of stability, high PF,high eciency and good heat dissipation effect.

The high-purity aluminum heat sink with high heat-conducting performance.The aluminum heat dissipation is specially designed, which

increases the heatdissipation area and enhances the eciency of hot and cold air heat exchange.Effectively reduce the temperature of the

light source and ensure the strong stability of the product function.

It is mainly used in schools, auditoriums, hotels, factories, gasstations,indoor gymnasiums, exhibition halls, railway station waiting rooms,

libraries,logistics ware houses, cold storage, etc. UFO high bay lamp is named because of its unique appearance and appearance like UFO

(unidentified flying object). It is a kind of energy-ecient indoor LED lamp, which can be widely used in industrial plants,production

workshops, supermarkets, sports and entertainment venues and warehouses.

APPLICATIONS

Factories, production workshops and logistics storage warehouses

Indoor gymnasiums, exhibition halls and large auditorium spaces

Railway waiting rooms, libraries and large‑scale supermarket venues

TECHNICAL SPECIFICATIONS

Title PHILIPS Highbay spectraled energy saver lights High Bay G2 System
Make PHILLIPS
Commodity A0-012-120w
Switch Position HING
Rated Power 120W
Rated Input Voltage/Frequency 100V-277V/50-60Hz
Output Current 0.56A
Luminous Flux 15418 lm
System Efficacy 150 LM / W
Colour Temperature
CCT 5000k-5500k
LED Qty BMTC LED-200pcs
Power Factor PF@0.9
Beam Angle 90±5'
Color Tolerance SDCMs5
CRI(Ra) Ra>70
Driver PHILIPS
Material AL+PC
3-core cable Power Input Cable: 3×1mm $^{2}$
Lamp Color black
Protection Class Class I
IP Grade IP65
Surge Test L-N-4KV L-N-P-4KV
Operational Environment -30°C+40°C
Service Life 50000H
Installation Caliber φ10mm
Certification CE
Installation Hoisting
Size φ240*13mm
Adjustable Angle /
Warranty Period /
Product Weight 1.27kg
Inner Box Size /
Carton Size 51.5*51.5*30.5cm
QTY 8pcs
N.W. 1.27kg

FAQ

Q1: What beam angles can this high‑bay light support?

A1: It provides three optional beam distributions: 60°, 90° and 115° for different lighting‑coverage needs.

Q2: What is the input voltage range of its matching driver?

A2: Its driver accepts 100‑277 VAC input voltage to realize dependable global application.

Q3: Can this product realize intelligent lighting solutions?

A3: Yes. Fortimo‑HE‑module‑equipped versions support smart control with SR IP67 drivers and related sensors.
