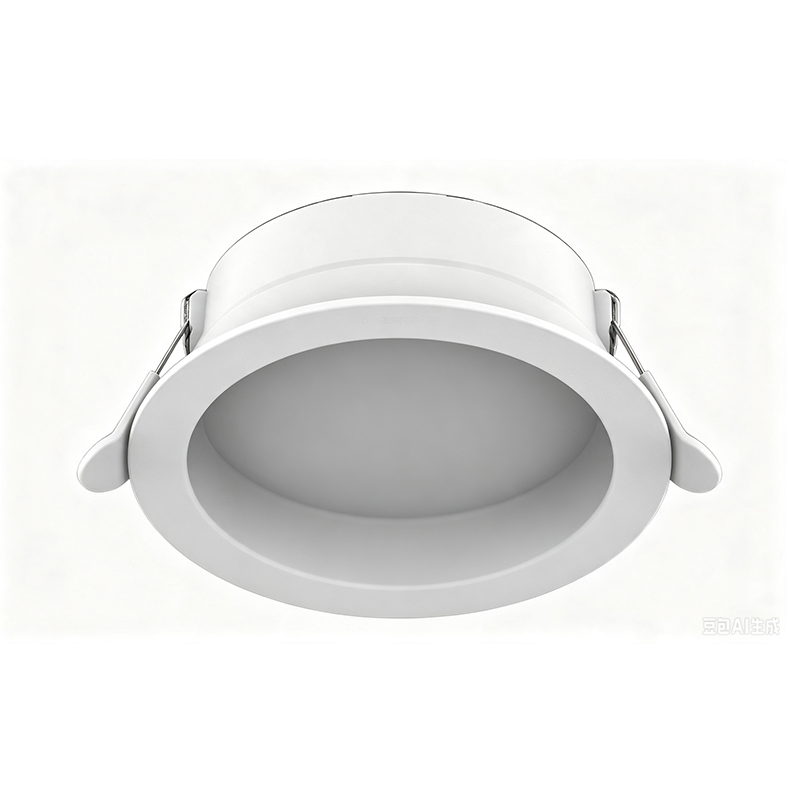

PHILIPS Comfort Recessed LED Downlight DN216 RC Rd D75 30K 5.5W WH 929004674810
Spot Light
DN216 is a slim‑type recessed LED downlight series with double anti‑glare design. It adopts 34mm deep light source and 23° shielding angle, paired with 3D micro‑prism optics and Ra90 high‑CRI for true‑to‑life color. Ultra‑thin integrated body reaches 40mm minimum height. 11mm wide trim allows larger cut‑out tolerance. Full‑size range covers Φ75‑200mm, 5.5‑24W power for diversified indoor lighting projects.
- ⭐ Double anti‑glare comfortable lighting
- ⭐ Ultra‑thin body for flexible installation
- ⭐ Full‑size & wide‑power product range
Specifications
- Application Scenarios
- Indoor
- LED Light Types
- LED Spot Light
KEY FEATURES
Equipped with double anti‑glare structure, 34mm deep light source and 23° shielding angle effectively reduce glare and deliver soft, eye‑friendly illumination for indoor spaces.
Built‑in million‑level 3D micro‑prism optics together with CRI Ra90, reproduces natural real‑world colors and greatly improves visual comfort for users.
Ultra‑thin integrated design with minimum 40mm height saves ceiling space, suitable for environments with limited ceiling installation depth conditions.
11mm wide surface ring provides larger cut‑out tolerance, lowers installation difficulty and construction cost for electricians during site fitting work.
Complete series covers Φ75‑200mm sizes and 5.5‑24W power, higher brightness output meets various commercial and residential lighting application demands.
APPLICATIONS
Residential living room no‑main‑lamp ceiling lighting
Office and meeting room recessed indoor lighting
Retail shop and hotel interior illumination projects
TECHNICAL SPECIFICATIONS
PHILIPS Product 12NC List:
- DN220 G2 RD D75 30K 6W WH 6W 3000K φ 95×29 929004760809
- DN220 G2 RD D75 40K 6W WH 6W 4000K φ 95×29 929004760909
- DN220 G2 RD D75 65K 6W WH 6W 6500K φ 95×29 929004761009
- DN220 G2 RD D90 30K 10W WH 10W 3000K φ 115×29 929004761409
- DN220 G2 RD D90 40K 10W WH 10W 4000K φ 115×29 929004761509
- DN220 G2 RD D90 65K 10W WH 10W 6500K φ 115×29 929004761609
- DN220 G2 RD D120 30K 15W WH 15W 3000K φ 140×35 929004761709
- DN220 G2 RD D120 40K 15W WH 15W 4000K φ 140×35 929004761809
- DN220 G2 RD D120 65K 15W WH 15W 6500K φ 140×35 929004761909
- DN220 G2 RD D150 30K 19W WH 19W 3000K φ 170×35 929004762009
- DN220 G2 RD D150 40K 19W WH 19W 4000K φ 170×35 929004762109
- DN220 G2 RD D150 65K 19W WH 19W 6500K φ 170×35 929004762209
- DN220 G2 RD D200 30K 24W WH 24W 3000K φ 220×35 929004762309
- DN220 G2 RD D200 40K 24W WH 24W 4000K φ 220×35 929004762409
- DN220 G2 RD D200 65K 24W WH 24W 6500K φ 220×35 929004762509

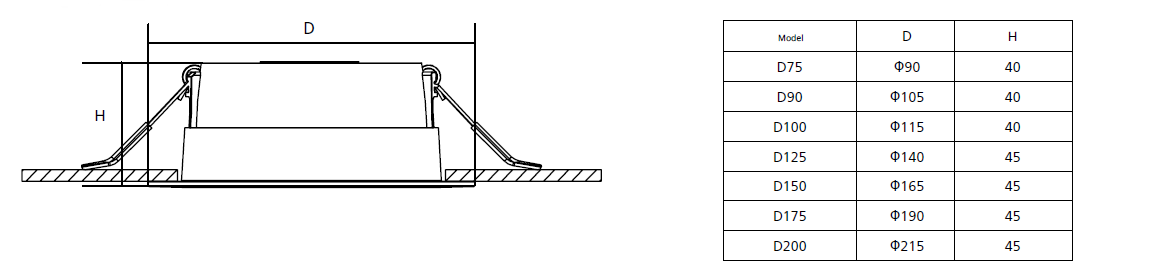

Dimension Drawing (Unit: mm)
Click to enlarge
FAQ
Q1: What is the service life of DN216 LED downlight?
A1: The rated operating lifetime is 15000 hours under normal working conditions.
Q2: What color rendering index does DN216 achieve?
A2: It features high CRI Ra90 to restore real object colors faithfully.
Q3: What is the minimum installation height of DN216 series?
A3: The ultra‑thin model reaches minimum 40mm overall lamp height.
