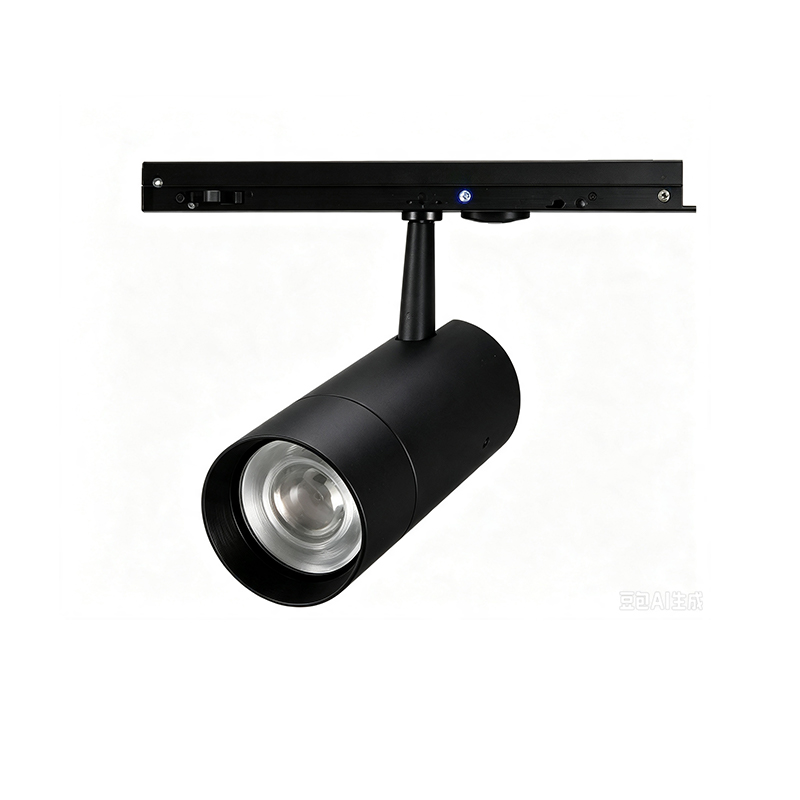

48V Commercial Magnetic Track Light System CRI90 Anti‑Glare Spotlight Linear Flood Light for Retail Shop
Spot Light
Commercial Magnetic Track Lighting Series adopts double‑layer optical design achieving UGR＜6 for comfortable anti‑glare lighting. Built‑in magnetic & buckle dual‑lock structure with 48V low‑voltage safe power supply. It supports freely movable and combinable spotlights, linear floodlights and linear spotlights, offering long‑life high‑CRI performance for modern commercial interior projects.
- ⭐ Low‑glare double‑layer optical design
- ⭐ 48V low‑voltage dual‑lock safety structure
- ⭐ Freely combinable magnetic track modules
Specifications
- Application Scenarios
- Indoor
- LED Light Types
- LED Spot Light
KEY FEATURES
Adopts professional double‑layer optical structure, 30° shielding angle keeps UGR＜6. Linear lights apply dual soft‑light design to deliver even brightness without stray spots on luminous edges.
Magnetic plus buckle dual‑insurance locking mechanism prevents accidental falling. High‑quality copper material brings excellent thermal conductivity to accelerate heat dissipation for reliable operation.
48V extra‑low‑voltage power input guarantees touch‑safe performance. Users can replace modules by plug‑and‑play without direct contact with high‑voltage circuit.
Light units can be moved, adjusted and freely combined on magnetic track. High‑power driver supports multiple fixtures simultaneously, greatly improving installation & modification efficiency.
Multiple module types and power options are available, CRI≥90 color rendering, 25000‑hour service life, meeting diverse personalized commercial lighting layout requirements.
APPLICATIONS
Shopping mall and retail store interior lighting
Boutique, showroom accent display lighting
Modern office and commercial space lighting
TECHNICAL SPECIFICATIONS
PHILIPS Product 12NC List:
- ST033T G2 LED5/940 7W I WB BK CN 4000K 911401834287
- ST033T G2 LED5/930 7W I WB BK CN 3000K 911401834387
- ST033T G2 LED5/940 7W I WB WH CN 4000K 911401834487
- ST033T G2 LED5/930 7W I WB WH CN 3000K 911401834587
- ST033T G2 LED8/930 10W I MB WH CN 3000K 911401834687
- ST033T G2 LED8/930 10W I MB BK CN 3000K 911401834787
- ST033T G2 LED8/940 10W I MB WH CN 4000K 911401834887
- ST033T G2 LED8/940 10W I MB BK CN 4000K 911401834987
- ST033T G2 LED8/930 10W I WB WH CN 3000K 911401835087
- ST033T G2 LED8/930 10W I WB BK CN 3000K 911401835187
- Only partial models shown, please contact us for full options

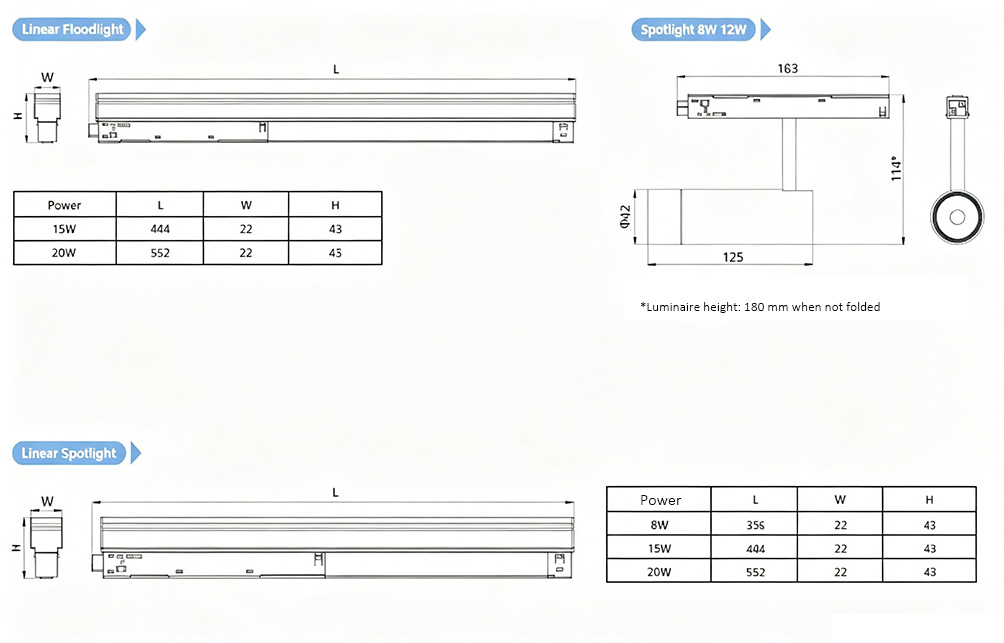

Dimension Drawing (Unit: mm)
Click to enlarge
FAQ
Q1: What light modules are included in this magnetic track series?
A1: It contains spotlights, linear floodlights and linear spotlights for flexible combination on magnetic track rail.
Q2: What safety features does this 48V magnetic lighting system have?
A2: It has magnetic‑buckle dual‑lock structure and 48V low‑voltage design for touch‑safe anti‑drop protection.
Q3: What is the rated service life of these magnetic track light components?
A3: All modules feature 25000‑hours long operating lifetime with CRI≥90 high color rendering index.
