20kV IP67 3‑wire series SPD, Class II+III for LED street luminaires
BP-SPD20KV-3/S/II|Outdoor Street Light Surge Arrester SPD

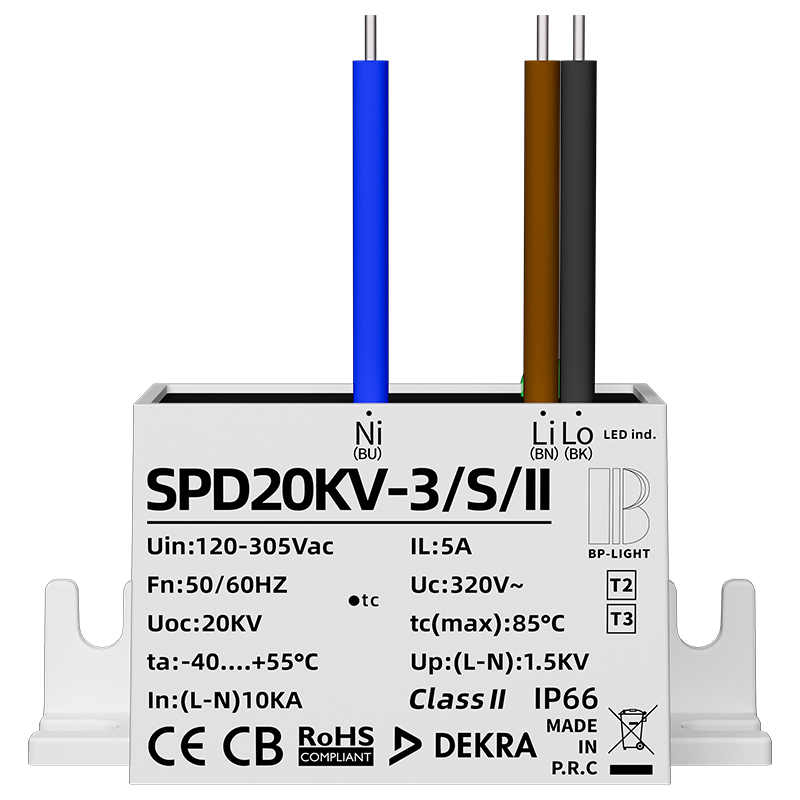

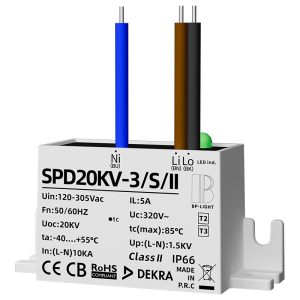

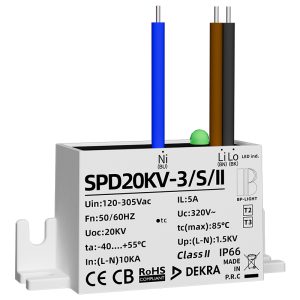

Built to guarantee stable electrical connection and shield LED drivers from surge damage, our custom 3‑wire Class II+III surge protector suits Class I outdoor luminaires. It holds CE and CB certifications, features IP67 waterproof performance, and provides three surge rating selections:10kV,12kV and 20kV.
- ⚡ 20kV Surge Protector
- ⚡ 3-Wire Series Class II Surge Protector
- ⚡ IP67, CE & CB Certified
Specifications
- Model
- BP-SPD20KV-3/S/II
- Applicable luminaires
- Class Il luminaire
- Certifications
- CB, CE, RoHS
- Connection
- Series
- Max input voltage (Un)
- 220-240V
- IP Rating
- IP67
- Max Discharge Current
- 20KA
- Nominal Discharge Current
- 10KA
- SPD Category
- SPD
KEY FEATURES
Maximum continuous operating voltage (AC) Uc (L-N) V]：320
Nominal voltage AC 50-60 Hz - Un V]：230/400
Nominal voltage AC 50-60 Hz - Un (L-N) V]：230
Nominal discharge current (8/20)- In (L-N) [kA]：10
Max Discharge Current (8/20) - Imax (L-N) [kA]：20
Rated current load - IL [A]：10
Voltage protection level at In - Up (L-N)[kV]：1.5
Open circuit Voltage(L-N)[kV]：20
Short-circuit Current rating-Isccr [A]:300
Response time tA (L-N) [ns]：≤25
TOV Ut 5s (LV systems, withstand) V]：337
TOV Ut 120min (HV systems, withstand) V]:442
Dynamic thermal disconnection：Yes
APPLICATIONS
Outdoor Road Lighting
Tunnel & Underground Traffic Lighting
Landscape Lighting & Outdoor Signage
Outdoor Lighting for Industrial Plants
Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
| Model | 20kV IP67 3‑wire series SPD, Class II+III for LED street luminaires |
|---|---|
| Temperature range [ºC] | -40 ...85 |
| Indication System Type | LED |
| Insulating material | PC |
| Housing color | RAL 9003 |
| Enclosure - IP | IP67 |
| Flammability class | UL94V-0 |
|---|---|
| Terminal connection | Pushin(in and out) |
| Wire Connections | Cable (in and out) 18# |
| Product Weight[g] | 67 |
| Packaging Dimensions (LXW X H) [Mm] | 68*23*33.7 |
FAQ
How to wire a 3-wire series Class II surge protector?
Connect the input live wire to the Li terminal of the surge protector, the Lo terminal of the surge protector to the input live wire (L) of the LED driver, and connect the neutral wires (N) of the input power supply, surge protector and LED driver in parallel.
Can a 3-wire series Class II surge protector provide protection?
Yes, it can effectively suppress surge voltage and protect the LED driver and the internal circuits of the luminaire.
What is the difference between a 3-wire series Class II surge protector and a 4-wire series Class II surge protector?
The working principle is the same — both are protected by the live wire (L) terminal of the surge protector. The only difference is that the 4-wire type has one extra wire.
What are the advantages of a 20kV 3-wire series Class II surge protector over a 20kV series Class II surge protector?
It has a higher voltage withstand level. The 20kV model provides stronger lightning and surge resistance, making it suitable for harsher environments.
Does the 20kV 3-wire series Class II surge protector have certifications?
Yes, it is certified with CE and CB in accordance with IEC 61643-11, has an IP67 protection rating, and complies with relevant safety standards.
Is the SPD installed too far from the luminaire?
Long wires cause high residual voltage. Lights still get damaged even with SPD.Best solution: built-in SPD + upstream Type 2 SPD.
