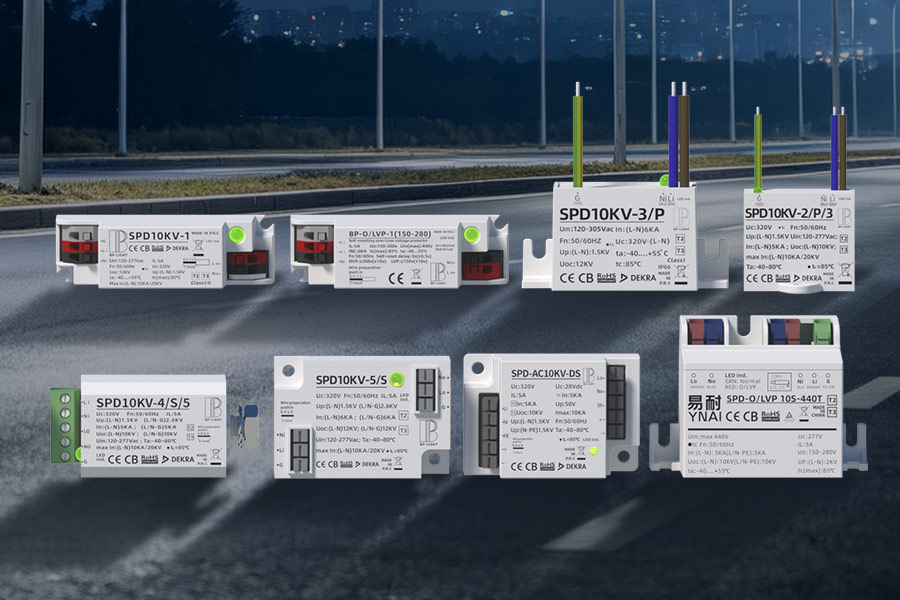

LED Lighting SPD+O/LVP Product Specification Selection Sheet

• Published: Aug 11, 2026
• Updated: Aug 28, 2026
• 1 min read
• BP-LIGHT Engineering Team

Our LED SPDs feature versatile functions and a comprehensive product range. You can select the suitable model according to your requirements.

Product Name	10KV	12KV	20KV	IP20	IP67	Series	Parallel	Type 2	Type 3	Uc:320v	Uc:385v	Uc:440v	Uc:485v	Class I	Class II	2 CH	OVP	LVP	Inrush	Terminal	Cable	0-10V	1-10V	Dali 2.0	D4i	DMX	RS485	Rohs	CE	CB	ENEC	UL
BP-SPD10KV-1	●			●		●	●	●	●	●				●	●					●								●	●	●	●
BP-SPD10KV-1/II	●			●		●	●	●	●	●					●					●								●	●	●	●
BP-SPD12KV-1		●		●		●	●	●	●	●				●	●					●								●	●	●
BP-SPD12KV-1/II		●		●		●	●	●	●	●					●					●								●	●	●
BP-SPD10KV-2/S/5	●				●	●		●	●	●				●							●							●	●	●	●
BP-SPD10KV-2/S/II/4	●				●	●		●	●	●					●						●							●	●	●	●
BP-SPD10KV-2/P/3	●				●			●	●	●				●							●							●	●	●	●
BP-SPD10KV-2/P/ II/2	●				●		●	●	●	●					●						●							●	●	●	●
BP-SPD10KV-3/P	●				●		●	●	●	●				●							●							●	●	●	●
BP-SPD10KV-3/P/II	●				●		●	●	●	●					●						●							●	●	●	●
BP-SPD10KV-3/S	●				●	●		●	●	●				●							●							●	●	●	●
BP-SPD10KV-3/S/II	●				●	●		●	●	●					●						●							●	●	●	●
BP-SPD10KV-3/P/M	●				●		●	●	●	●				●							●							●	●	●	●
BP-SPD10KV-3/S/M	●				●	●		●	●	●				●							●							●	●	●	●
BP-SPD12KV-3/P		●			●		●	●	●	●				●							●							●	●	●
BP-SPD12KV-3/P/II		●			●		●	●	●	●					●						●							●	●	●
BP-SPD12KV-3/S		●			●	●		●	●	●				●							●							●	●	●
BP-SPD12KV-3/S/II		●			●	●		●	●	●					●						●							●	●	●
BP-SPD12KV-3/P/M		●			●		●	●	●	●				●							●							●	●	●
BP-SPD12KV-3/S/M		●			●	●		●	●	●				●							●							●	●	●
BP-SPD20KV-3/P			●		●		●	●	●	●				●							●							●	●
BP-SPD20KV-3/P/II			●		●		●	●	●	●					●						●							●	●
BP-SPD20KV-3/S			●		●	●		●	●	●				●							●							●	●
BP-SPD20KV-3/S/II			●		●	●		●	●	●					●						●							●	●
BP-SPD20KV-3/P/M			●		●		●	●	●	●				●							●							●	●
BP-SPD20KV-3/S/M			●		●	●		●	●	●				●							●							●	●
BP-SPD10KV-4/S/5	●			●		●		●	●	●				●						●								●	●	●	●
BP-SPD10KV-4/S/4	●			●		●		●	●	●					●					●								●	●	●	●
BP-SPD10KV-4/P/3	●			●			●	●	●	●				●						●								●	●	●	●
BP-SPD10KV-4/P/II/2	●			●			●	●	●	●					●					●								●	●	●	●
BP-SPD10KV-5/S	●			●		●	●	●	●	●				●	●					●								●	●	●	●
BP-SPD10KV-5/S/II	●			●		●	●	●	●	●					●					●								●	●	●	●
BP-SPD20KV-5/S			●	●		●	●	●	●					●	●					●								●	●	●	●
BP-SPD20KV-5/S/II			●	●		●	●	●	●						●					●								●	●	●	●
BP-SPD-AC10KV-DS	●			●		●	●	●	●	●				●	●	●				●		●	●	●	●	●	●	●	●	●	●
BP-SPD-AC10KV-DS/II	●			●		●	●	●	●	●					●	●				●		●	●	●	●	●	●	●	●	●	●
BP-O/LVP--1(150-280)				●		●						●		●	●		●	●	●	●								●	●
BP-O/LVP--1(100-305)				●		●						●		●	●		●	●	●	●								●	●
BP-O/LVP-2(150-280V）				●		●						●		●	●		●	●	●	●								●	●
BP-O/LVP-2(100-305V）				●		●						●		●	●		●	●	●	●								●	●
SPD+O/LVP10S-440T 150-280V 142 G1	●			●		●		●	●	●				●	●		●	●	●	●							●	●	●
SPD+O/LVP20S-440T 150-280V 142 G1			●	●		●		●	●	●				●	●		●	●	●	●							●	●	●
SPD+O/LVP10S-440W 150-280V 166 G1	●			●		●		●	●	●				●			●	●	●		●						●	●	●
SPD+O/LVP20S-440W 150-280V 166 G1			●	●		●		●	●			●		●			●	●	●		●						●	●	●
SPD+O/LVP10S-440T 85-305V 142 G2	●			●		●		●	●			●		●	●		●	●	●	●							●	●	●
SPD+O/LVP20S-440T 85-305V 142 G2			●	●		●		●	●			●		●	●		●	●	●	●							●	●	●
SPD+O/LVP10S-440W 85-305V 166 G2	●			●		●		●	●			●		●			●	●	●		●						●	●	●
SPD+O/LVP20S-440W 85-305V 166 G2			●	●		●		●	●			●		●			●	●	●		●						●	●	●
BP-SP1-10KV-14	●				●		●				●			●							●											●
BP-SP1-10KV-20	●				●		●				●			●							●											●
BP-SP1-10HV	●				●		●						●	●							●											●
BP-SP1-20KV			●		●		●				●			●							●											●
BP-SP1-20HV			●		●		●						●	●							●											●
